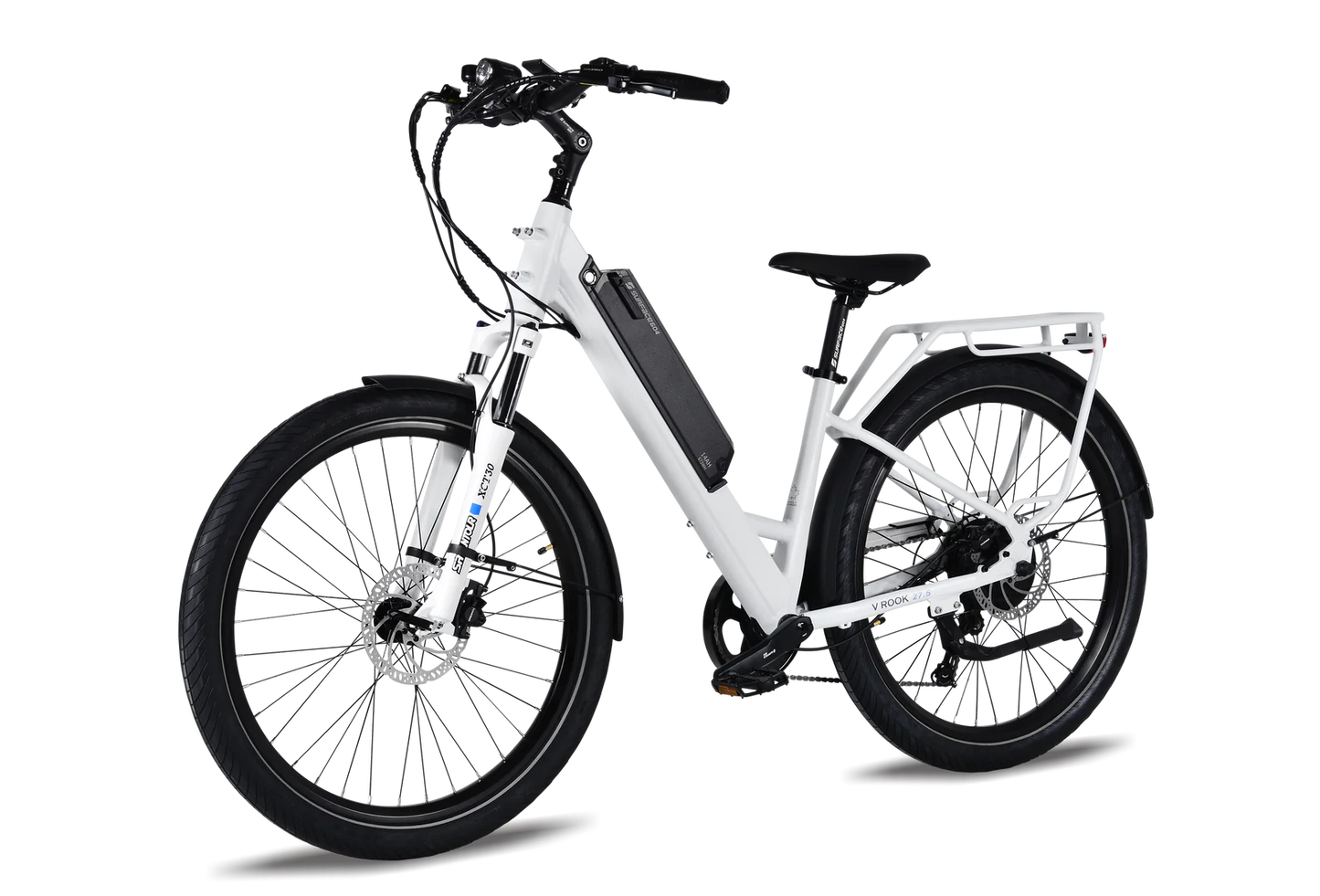

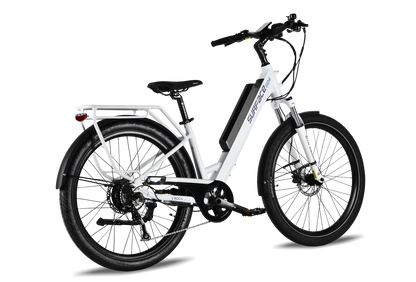

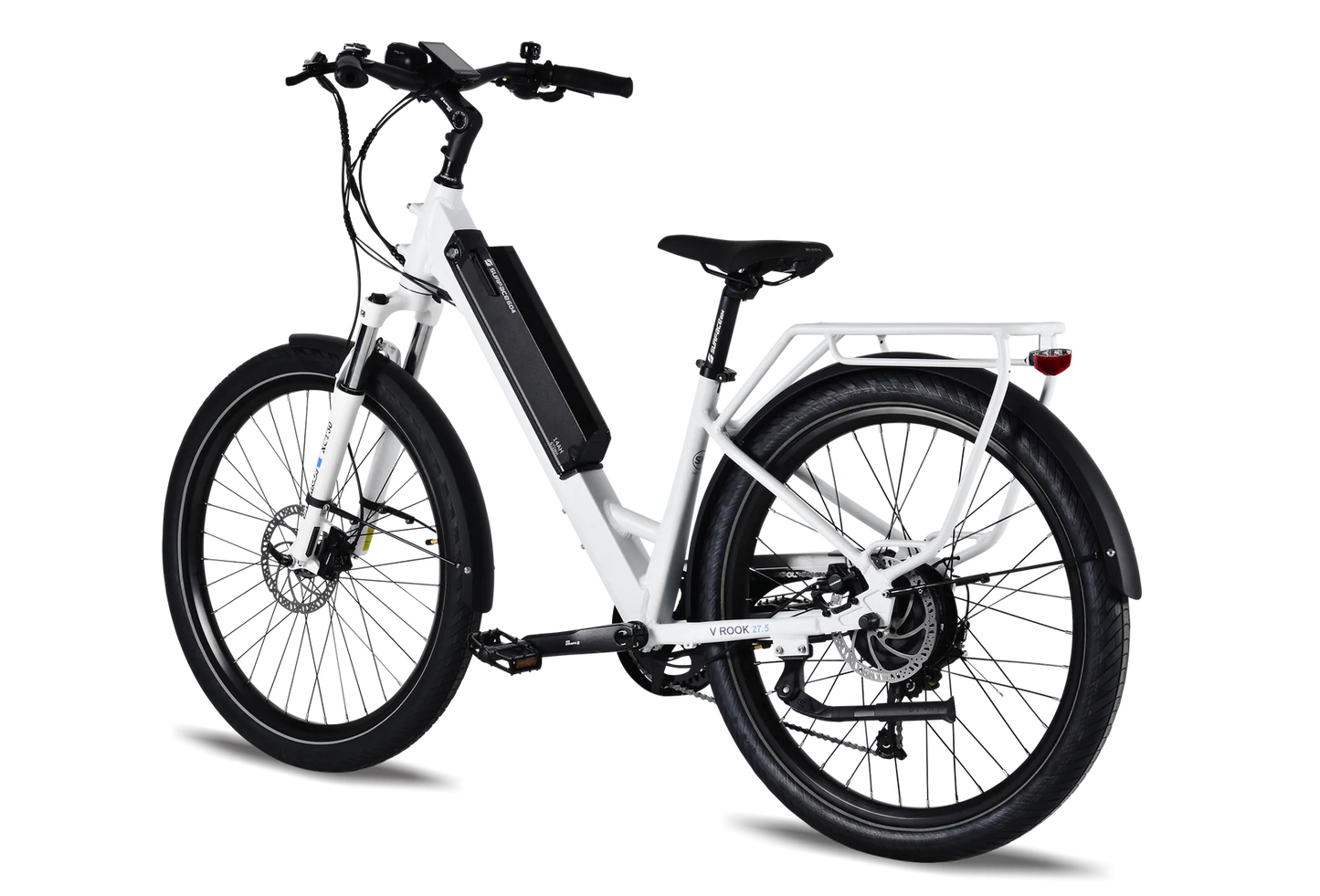

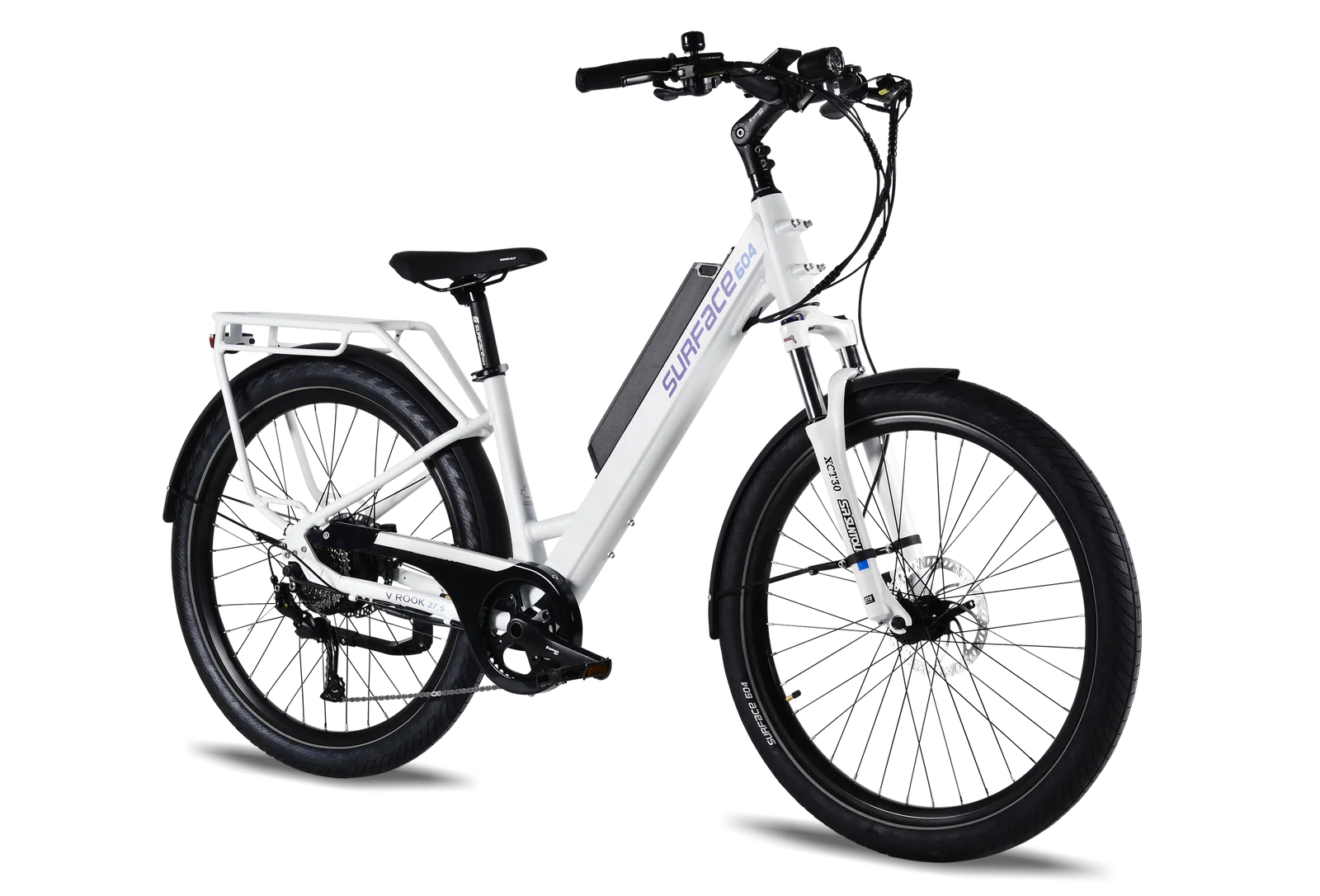

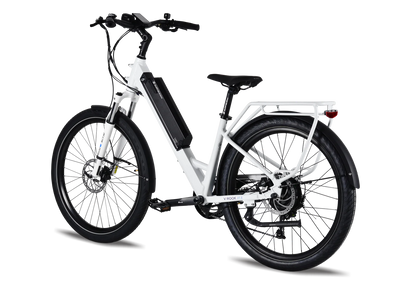

The Surface 604 V Rook is a comfortable and practical step-through e-bike designed for everyday urban riding. Built with ease of use in mind, the low step-through frame allows for quick and effortless mounting, making it ideal for riders of all experience levels. Its upright riding position keeps you comfortable and in control, whether you're commuting to work or cruising through your neighbourhood.

With smooth, consistent power from a 500W Bafang motor and a long-range 960Wh Samsung battery, the V Rook is designed to handle daily rides with confidence. Integrated lighting and dependable hydraulic disc brakes make it a reliable choice for both short trips and longer city rides.

Why riders choose the V Rook:

The V Rook is a go-to choice for riders who want a comfortable, easy-to-use e-bike for everyday travel. Its step-through frame makes getting on and off simple, while the upright riding position keeps things relaxed and enjoyable. It's built for reliability, smooth power, and stress-free riding around town.

Perfect for:

• Daily commuting and city riding
• Riders who want easy mounting (step-through design)
• Running errands and short trips
• Comfortable, upright cruising
• New e-bike riders looking for simplicity and confidence

Key Features:

• Motor: 500W Bafang Geared Hub Brushless (peaks at 750W), 65Nm torque
• Battery: 48V 20Ah / 960Wh Samsung Lithium-Ion 21700 cells
• Range: Up to 65 miles (105 km)
• Charge Time: 3–4 hours
• Suspension: SR Suntour XCM30, 27.5", 80mm travel
• Tires: 27.5" x 2.4" custom S604 with 3mm puncture protection
• Brakes: Tektro Auriga Hydraulic Disc, 180mm rotors

Bike Components:

• Motor: 500W Bafang Geared Hub Brushless (peaks at 750W)
• Drive Mode: Drop-out torque sensing pedal assist with thumb throttle
• Torque: 65Nm
• Controller: Surface604 designed, 12 MOS, 48V 500W 25A smart controller
• Battery: 48V 20Ah / 960Wh Samsung Lithium-Ion 21700 cells
• Battery Charge Time: 3–4 hours
• Display: Surface604 Color LCD with USB jack
• Lights: BÜCHEL "Shiny 120" front headlight + rear LED light
• Fork: SR Suntour XCM30, 27.5", 80mm travel, thru-axle hub
• Frame: 6061 Aluminum Alloy, step-through, internal cable routing, post mount brakes
• Stem: SATORI Up2+, adjustable
• Handlebar: PROMAX Aluminum, 30mm rise, 45° backsweep, 710mm wide
• Derailleur: Shimano Alivio 9-Speed
• Cassette: Shimano 11-36T
• Shift Levers: Shimano Alivio
• Brakes: Tektro Auriga Hydraulic Disc, post mount, with motor inhibitors
• Rotors: 180mm front & rear, 2.34mm thick
• Crankset: SAMOX 42T front sprocket
• Bottom Bracket: SAMOX sealed
• Pedals: Wellgo platform with die-cast body
• Chain: KMC 9-Speed
• Tires: 27.5" x 2.4" custom S604 with 3mm "Green Shield" puncture protection
• Saddle: Selle Royal Gel "Essenza Plus" with elastomer, adjustable up to 9°
• Seat Post Diameter: 30.4mm
• Battery Weight: 4.65 kg (10 lbs)
• Net Weight: 27.75 kg (61 lbs)
• Frame Sizes: S/M – 17.5" | M/L – 19.5"
• Rider Height: S/M: 5'2"–5'7" | M/L: 5'8"–6'6"
• Standover Height: S/M: 28.5" (724mm) | M/L: 30" (762mm)

In-Store Experience Upgrade:

Available in-store for an additional $150, which includes:

• Professional assembly and full safety check
• Personalized setup for comfort and performance
• Warranty support and service guidance
