*Special Order*

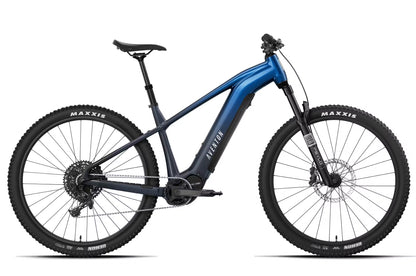

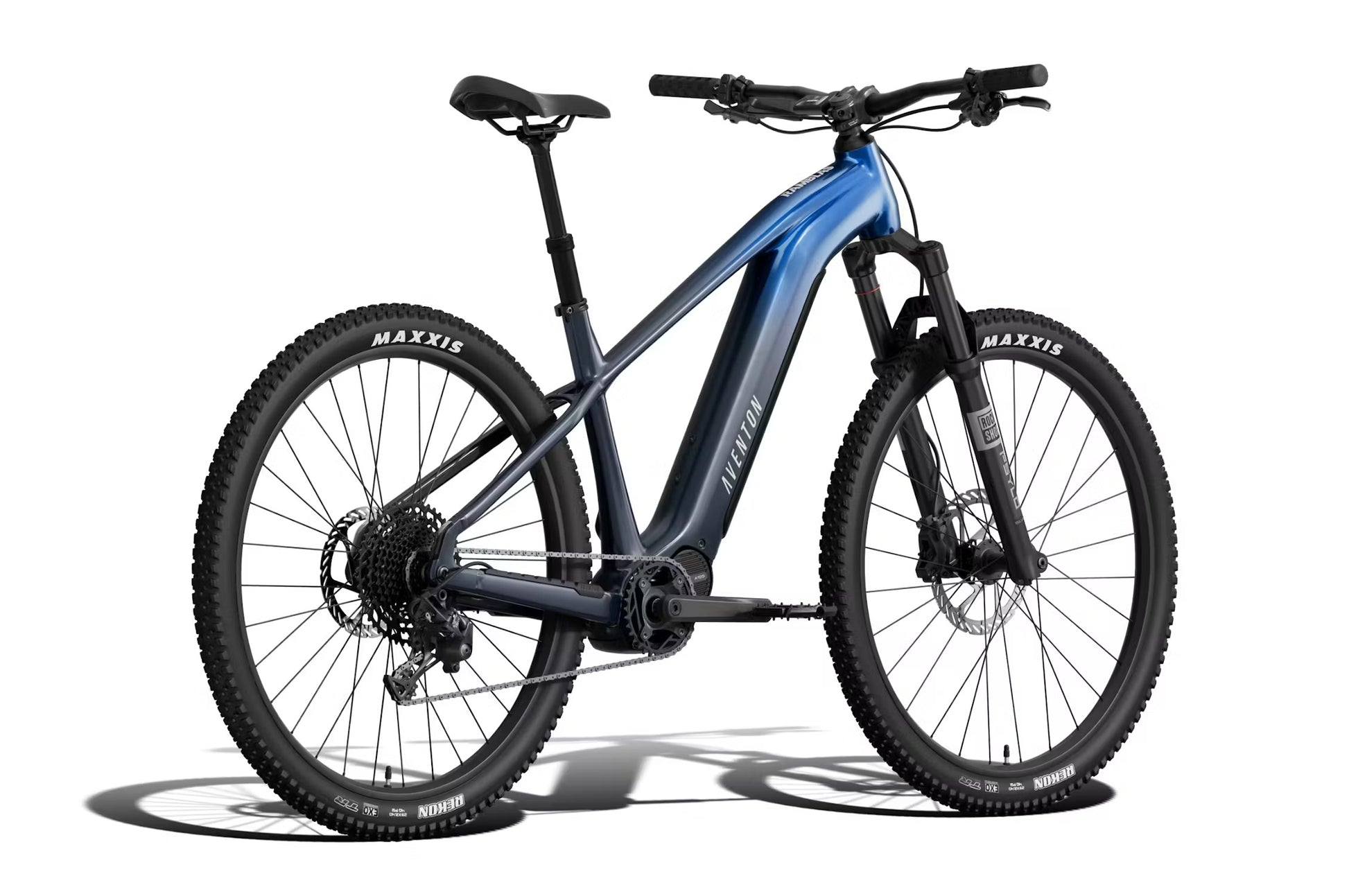

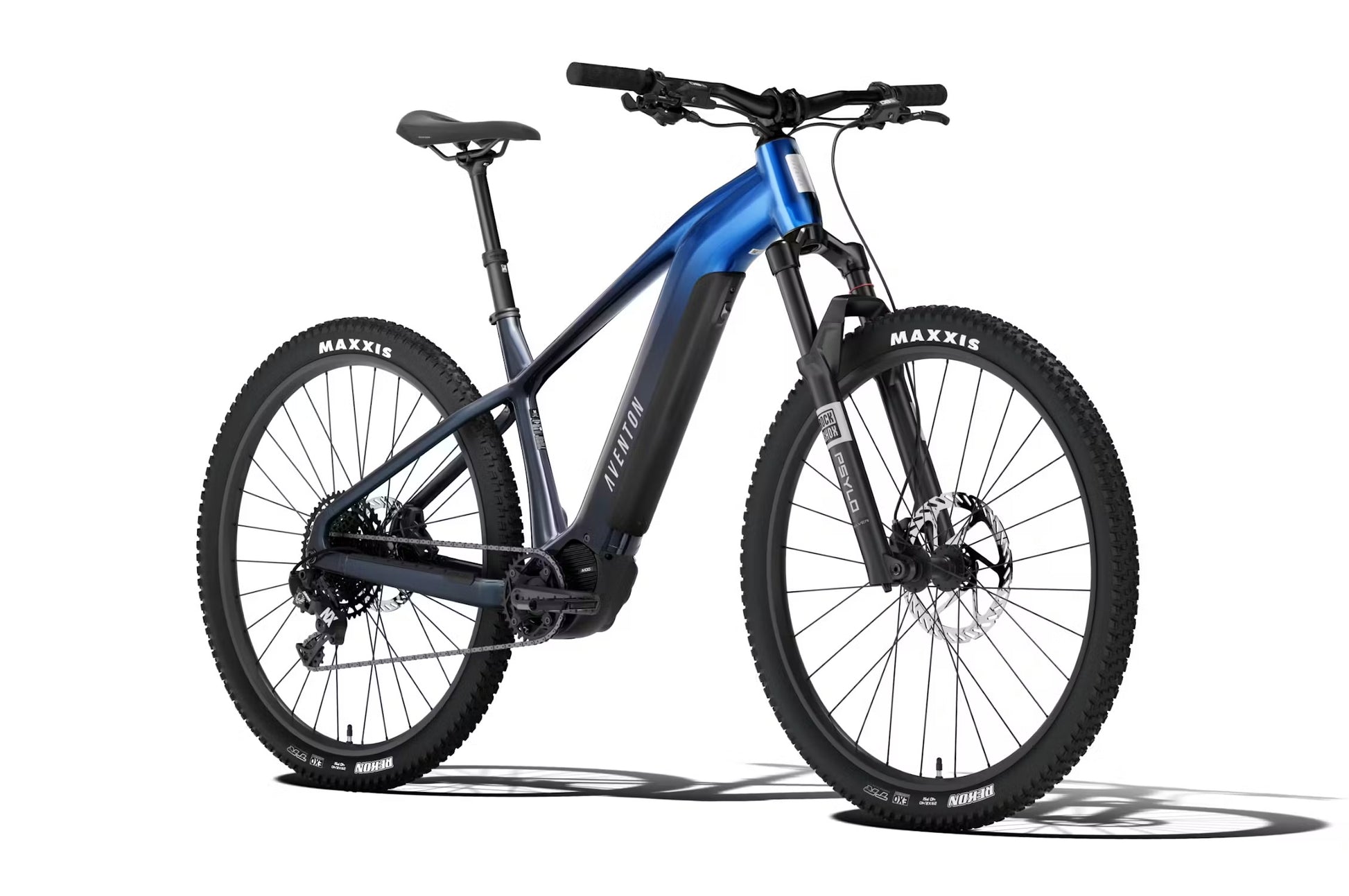

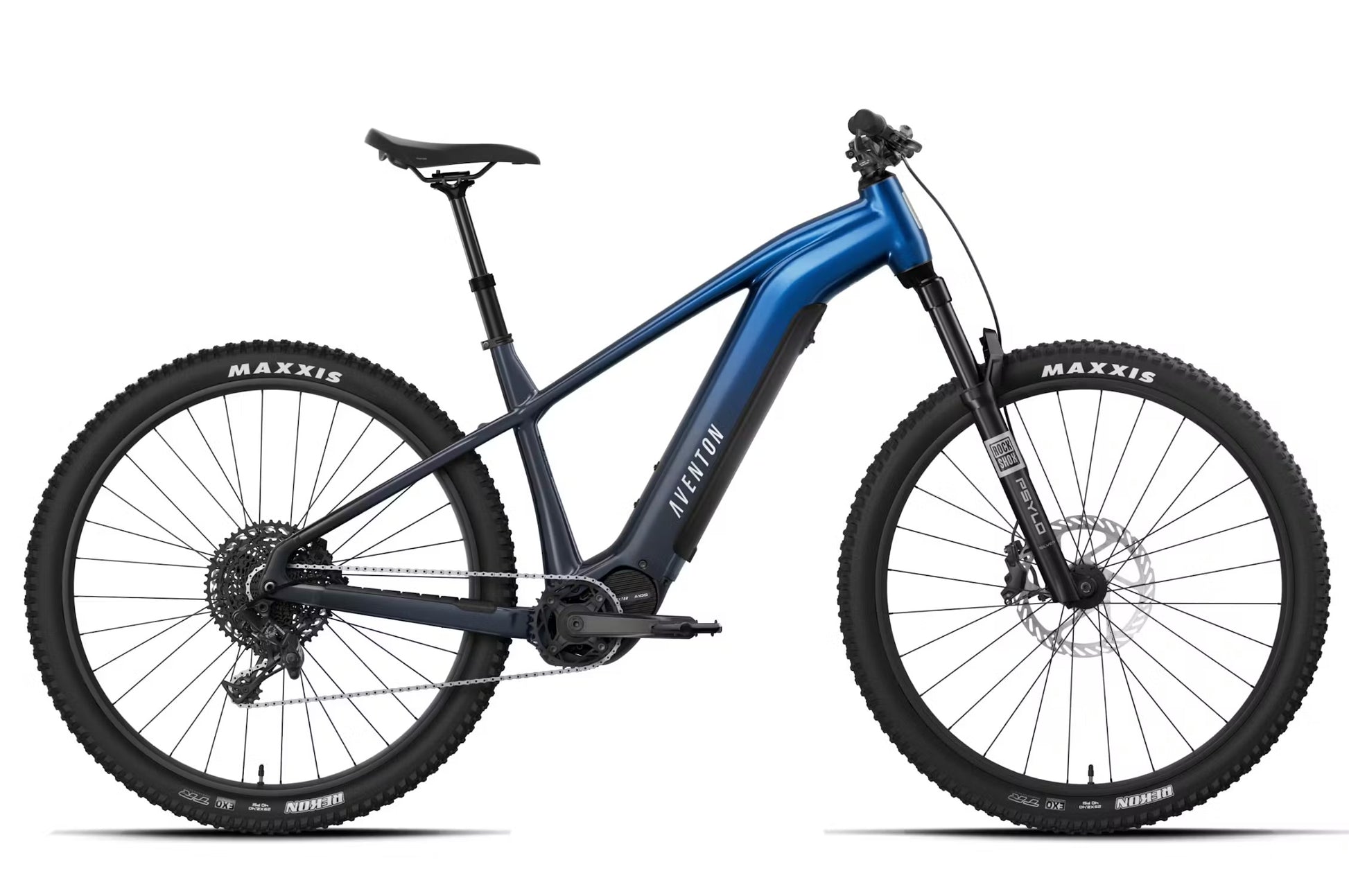

Carve out the uncommon route with Ramblas ADV, Aventon’s electric hardtail mountain bike. Rugged and reliable, this all-terrain ebike offers the ultimate comfort on mountain trails or city streets. Pursue any adventure with a range of up to 90 miles to roam, ramble, and revel in the dynamic side of the ride.

GENERAL INFO:

• MODEL:  Ramblas ADV Ebike
• WEIGHT:  54 lbs
• TOTAL WEIGHT LIMIT:  300 lbs
• RIDER HEIGHT:  5'5" - 6'5"
• BOX SIZE:  59 x 13 x 36
• WATER RESISTANCE:  Bike - IPX6 // Motor - IP67
• RANGE:  Up to 90 miles
• BIKE SAFETY CERTIFICATIONS
• TUV Certified in accordance with UL 2849 / UL 2271
• BATTERY SAFETY CERTIFICATIONS
• TUV Certified in accordance with UL 2849 / UL 2271
• FRAME:  6061 Single-Butted Aluminum Alloy
• FORK:  Rockshox Psylo Silver R, 35mm Stanchions, coil, 44mm off by set, 15x110mm BOOST, 1.5"tapered steerer tube, Rebound adjust
• REAR SPACING:  12x148mm
• FORK SPACING:  15x110mm

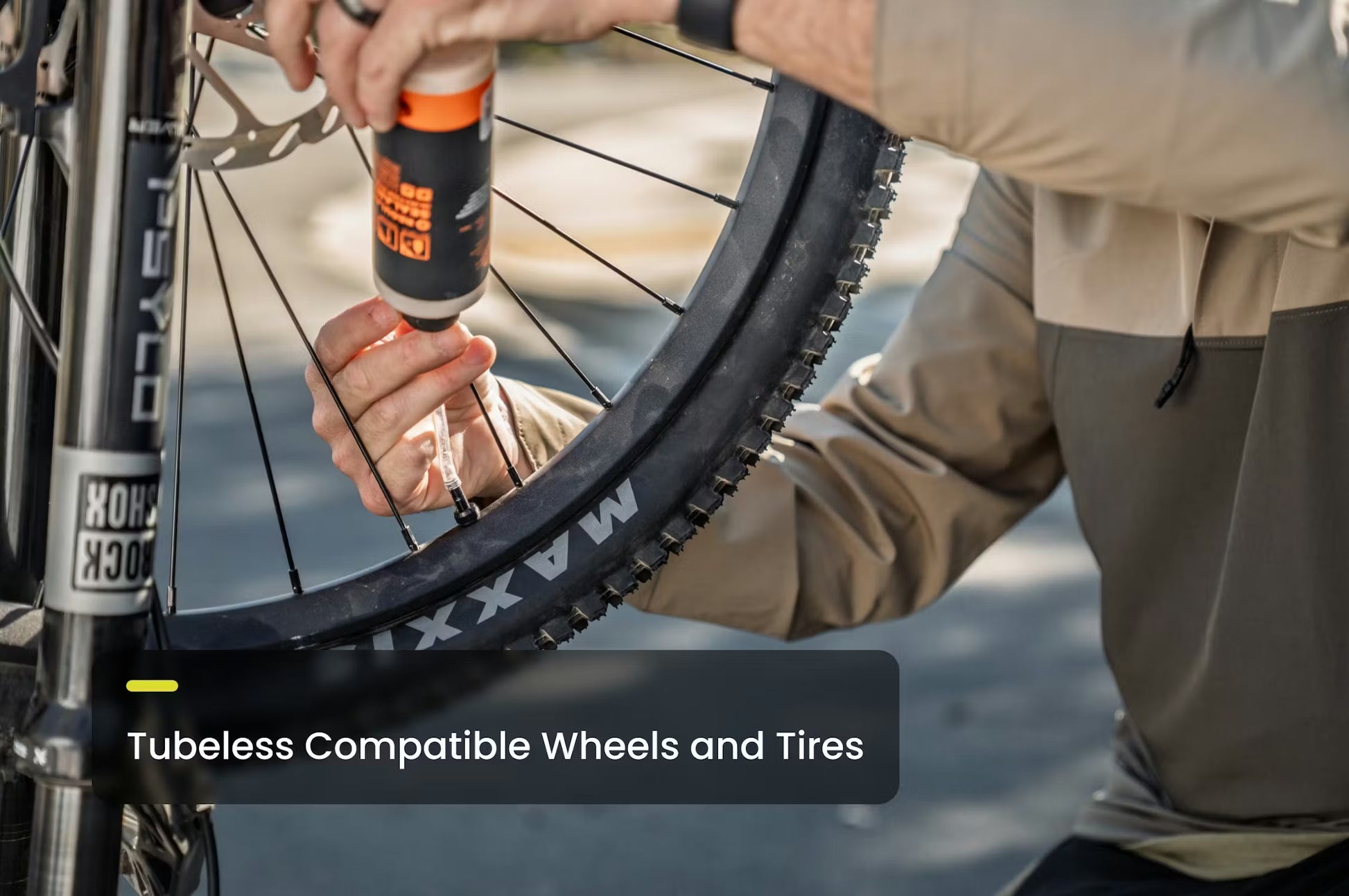

• REAR WHEEL:  29in, 32hole, BOOST Thru Axle, Presta Valve, Tubeless Ready
• FRONT WHEEL: 29in, 32hole, BOOST Thru Axle, Presta Valve, Tubeless Ready
• TIRES:  Maxxis Rekon 29"x2.4" Tubeless Ready

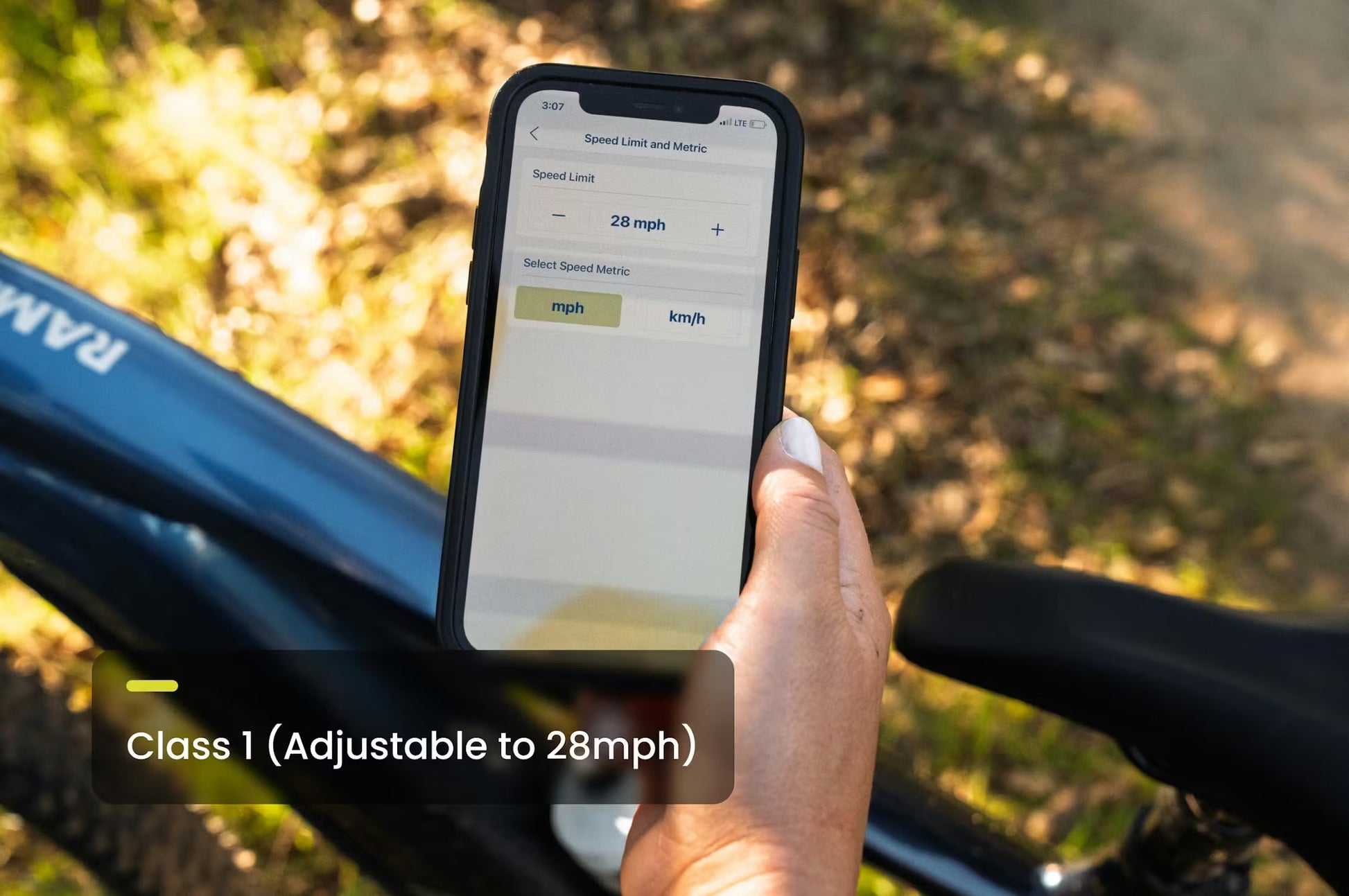

• SPEED:  Class 1

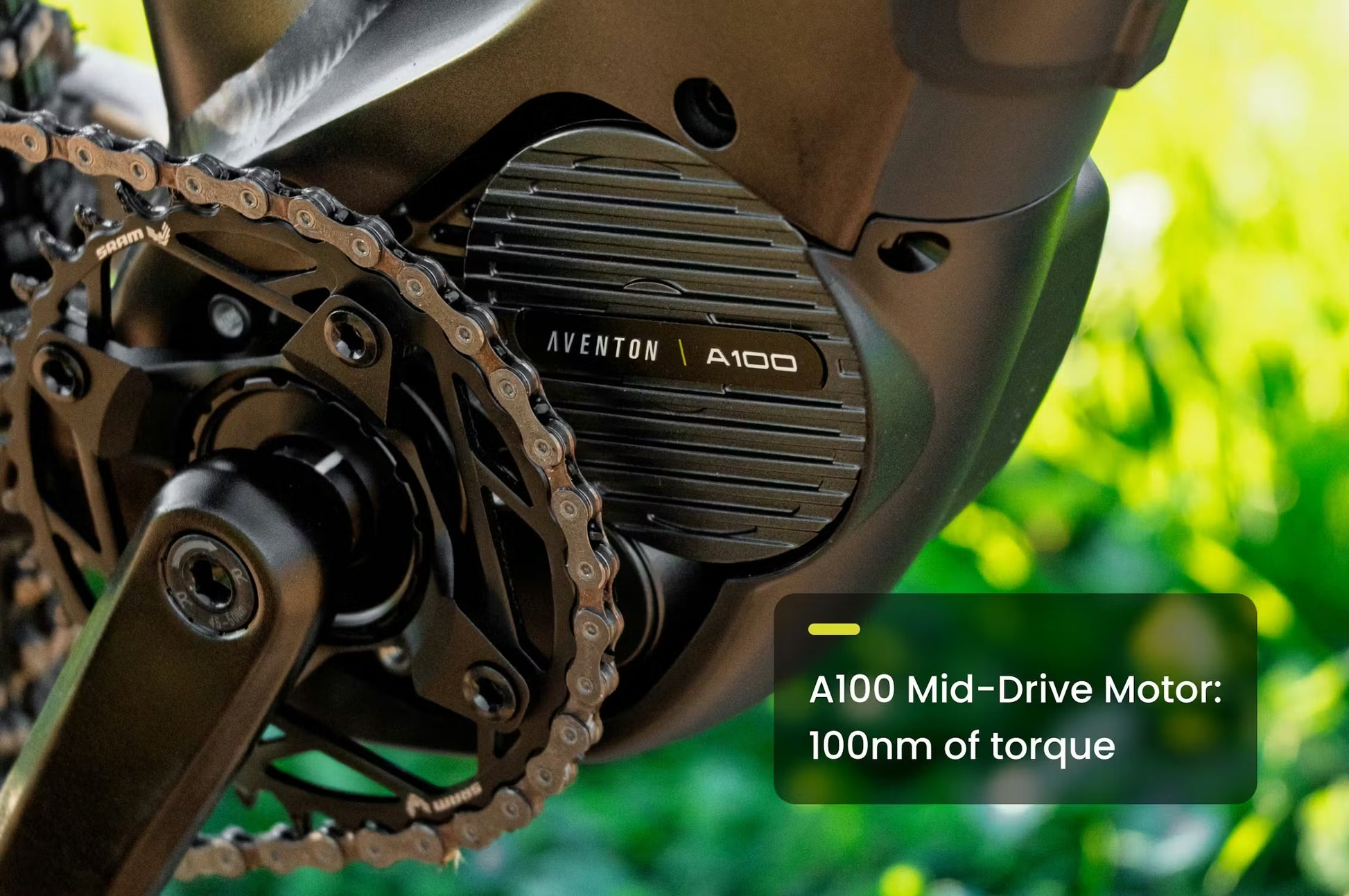

• MOTOR:  Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
• MOTOR TORQUE:  100Nm
• MOTOR POWER:  250W (750W Peak)
• DISPLAY:  Aventon BC201
• BATTERY:  Aventon 708 WH. 36V LG 21700 cells
• BATTERY WEIGHT:  8.44 lbs
• THROTTLE:  N/A
• SENSORS:  Double Sided Torque Sensor Integrated in Motor
• CHARGER:  42V 4A charger
• CHARGING TIME FROM 0% TO 100%:  5 hours
• LIGHTS:  Integrated
• FRONT BRAKE:  SRAM DB6 4-Piston Hydraulic Disc Brakes
• REAR BRAKE:  SRAM DB6 4-Piston Hydraulic Disc Brakes
• REAR BRAKE ROTOR:  SRAM G2 200mm
• FRONT BRAKE ROTOR:  SRAM G2 200mm

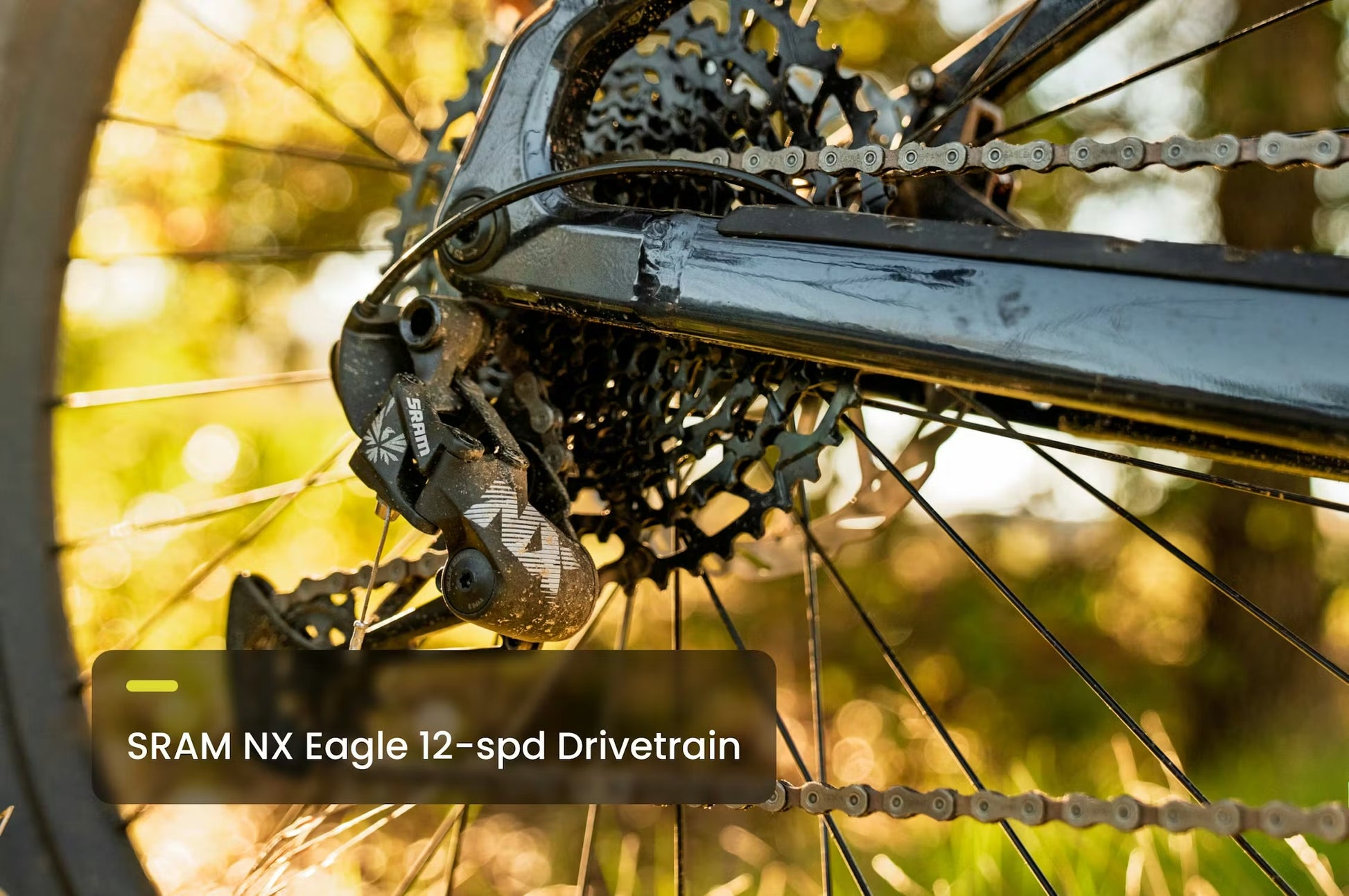

• REAR DERAILLEUR:  SRAM NX 12-Speed
• SHIFTER:  SRAM NX
• CHAIN:  SRAM 12-Speed
• CASSETTE:  SRAM SX 12-Speed 10-50T
• CHAINRING:  SRAM 34T
• CHAINRING BCD:  104
• CRANKSET:  165mm ISIS Splined
• BOTTOM BRACKET:  N/A
• PEDALS: 9/16" Alloy Platform
• SADDLE:  Aventon Saddle
• SEATPOST:  Manic LC 150mm travel for size M-XL. 31.6mm ø. 395mm length
• SEATPOST CLAMP:  34.9mm
• HANDLEBARS:  760mm width, 35mm clamp diameter, 33mm rise, 3* upsweep, 9* backsweep.
• GRIPS:  Aventon Lock on grips
• HEADSET:  T51Ks 28.6*56-56*39.8/ H:23.4mm
• INCLUDED ACCESSORIES:
• KICKSTAND Included
• LIGHTS: Included

In-Store Experience Upgrade:
Available in-store for an additional $150, which includes:

• Professional assembly and full safety check
• Personalized setup for comfort and performance
• Warranty support and service guidance
