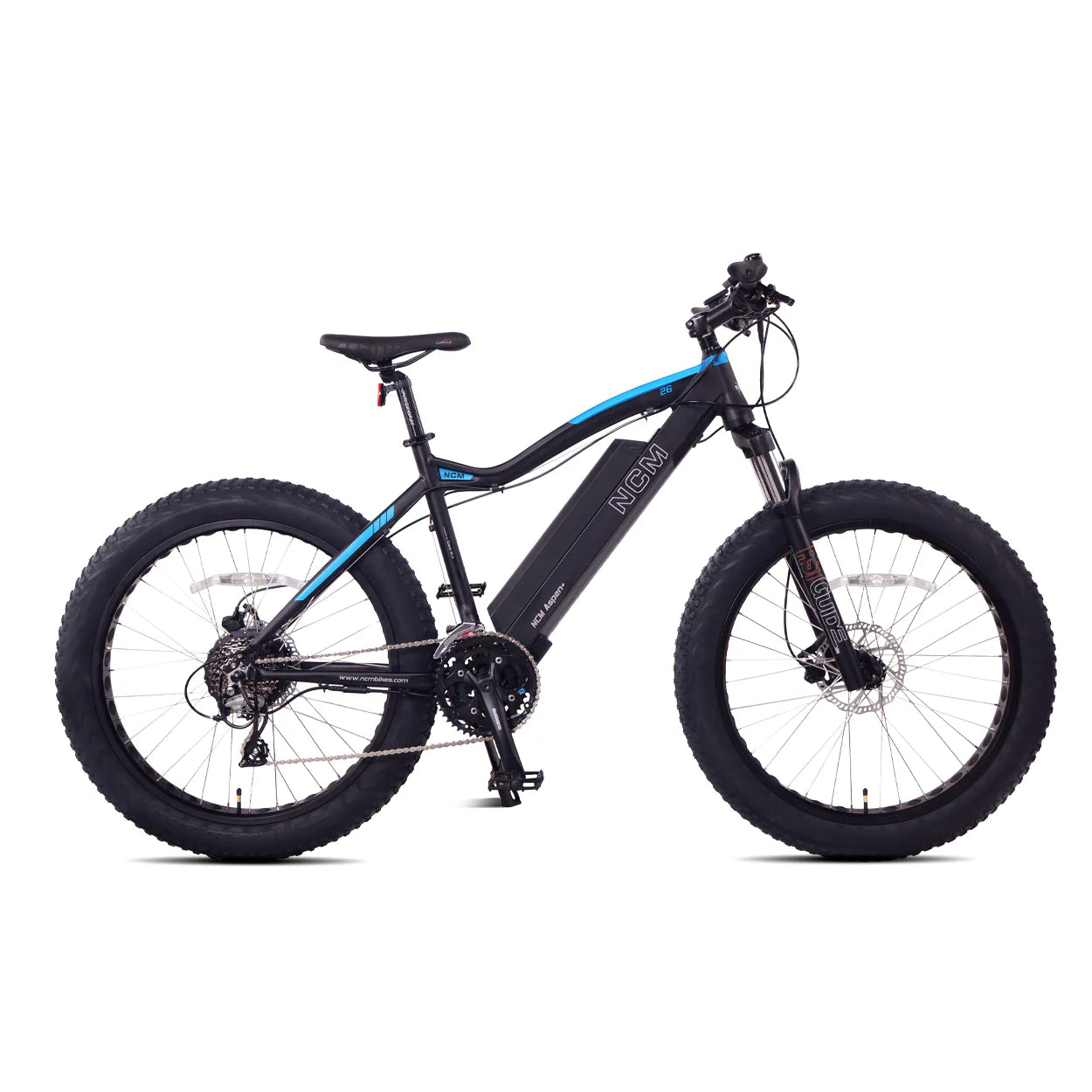

NCM Aspen Electric Fat Tire Bike

Built for riders who want to go beyond the pavement, the NCM Aspen is designed to handle everything from city streets to snow-covered trails.

With wide fat tires originally developed for Icelandic terrain, this bike grips confidently on sand, gravel, and rough paths — giving you the freedom to ride where standard bikes can't.

The durable aluminum frame and strong geometry provide stability and control, while the upright riding position keeps you comfortable whether you're commuting or exploring.

Why riders choose the Aspen:

• Fat tires for all-terrain confidence (snow, sand, gravel)
• Strong, stable frame for better control
• Comfortable riding position for longer trips
• Reliable electric assist for hills and distance

BIKE COMPONENTS

• Frame: Alu. 6061, 26" x 18.9 inches
• Suspension Fork: RST, Guid-TNL-26, Alu.
• Brake: F/R: Tektro Hydraulic Disc Brakes, HD-E350
• Freewheel: 8 Speed, 11-32T, Silver
• Tire: CST, C1752, 26" x 4.0, Black
• Saddle: Selle Royal, LOOKIN, Black
• Stem: Promax. Alu. MA-471, Ext 90mm
• Crank: Shimano, Acera, 28/38/48T
• Shifter: Shimano, Altus, F: M315-L, 3-Speed; R: M315-8R, 8-Speed
• Front Derailleur: Shimano, Altus, M310, 3-Speed
• Rear Derailleur: Shimano, Acera, M360, 8-Speed

ELECTRIC COMPONENTS

• Battery: Das-Kit, i5-4816, 48V 16Ah (768Wh) lithium-ion battery for extended range and reliable performance
• Motor: Das-Kit, X15-fat, Rear drive motor, 48V 500W, 32 km/h
• Controller: Das-Kit, CT5-I5, 48V 18A
• Charger: 48V 3A, US standard
• Display: Das-Kit, C7, 6 Levels
• Front Light: Cateye, Front reflector
• Rear Light: Cateye, Rear reflector

WEIGHT

• Net Weight (with battery): 30.0 kg. (66 lbs)
• Battery Weight: 4.0 kg. (8.818 lbs)
• Max Load (rider + bike): 125.0 kg. (275.688 lbs)

In-Store Experience Upgrade:

Available in-store for an additional $150, which includes:

• Professional assembly and full safety check
• Personalized setup for comfort and performance
• Warranty support and service guidance
