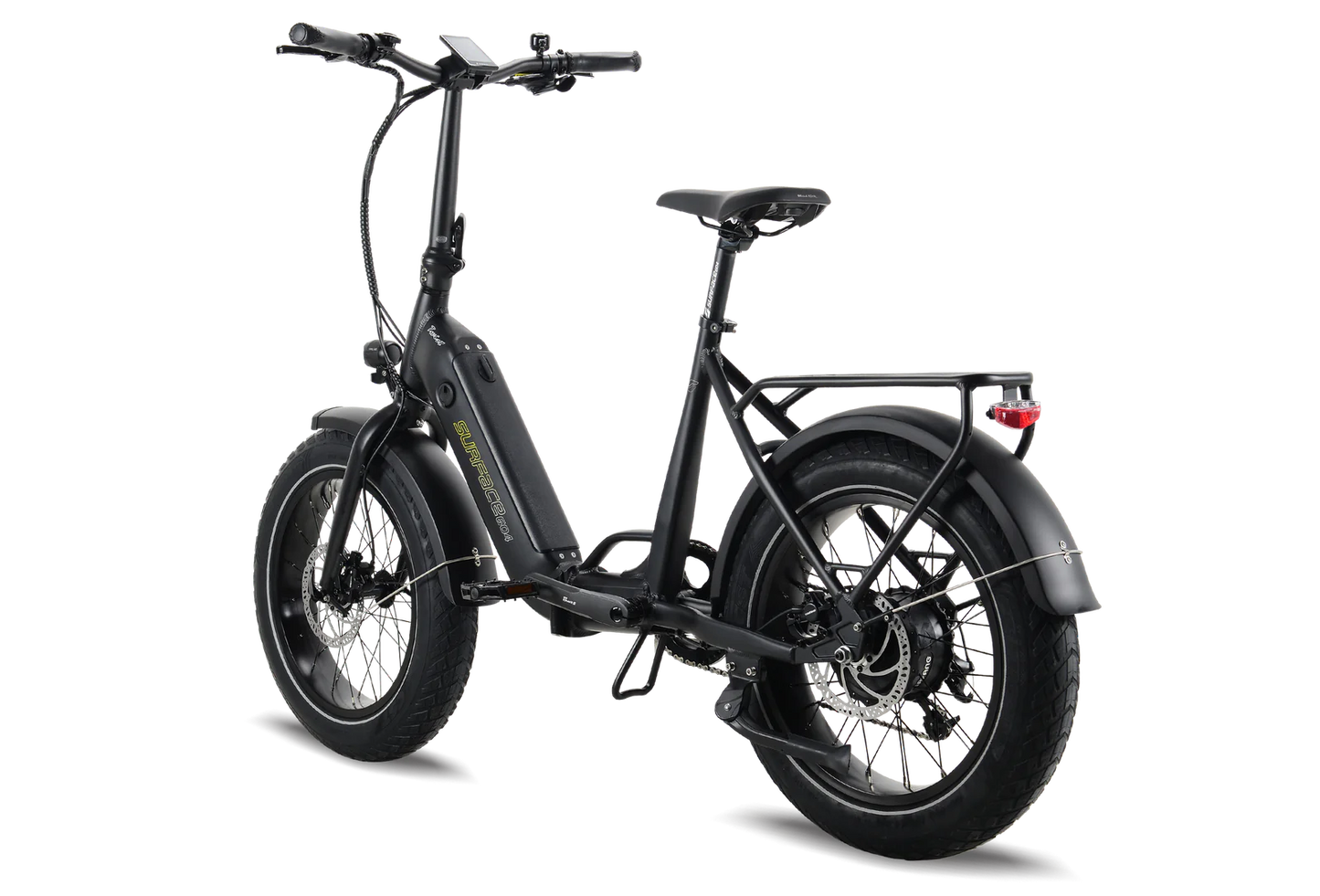

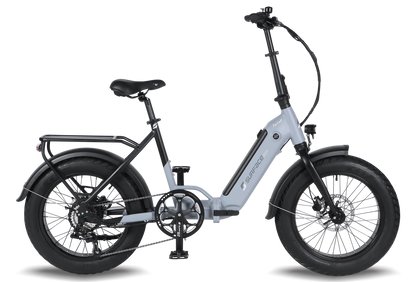

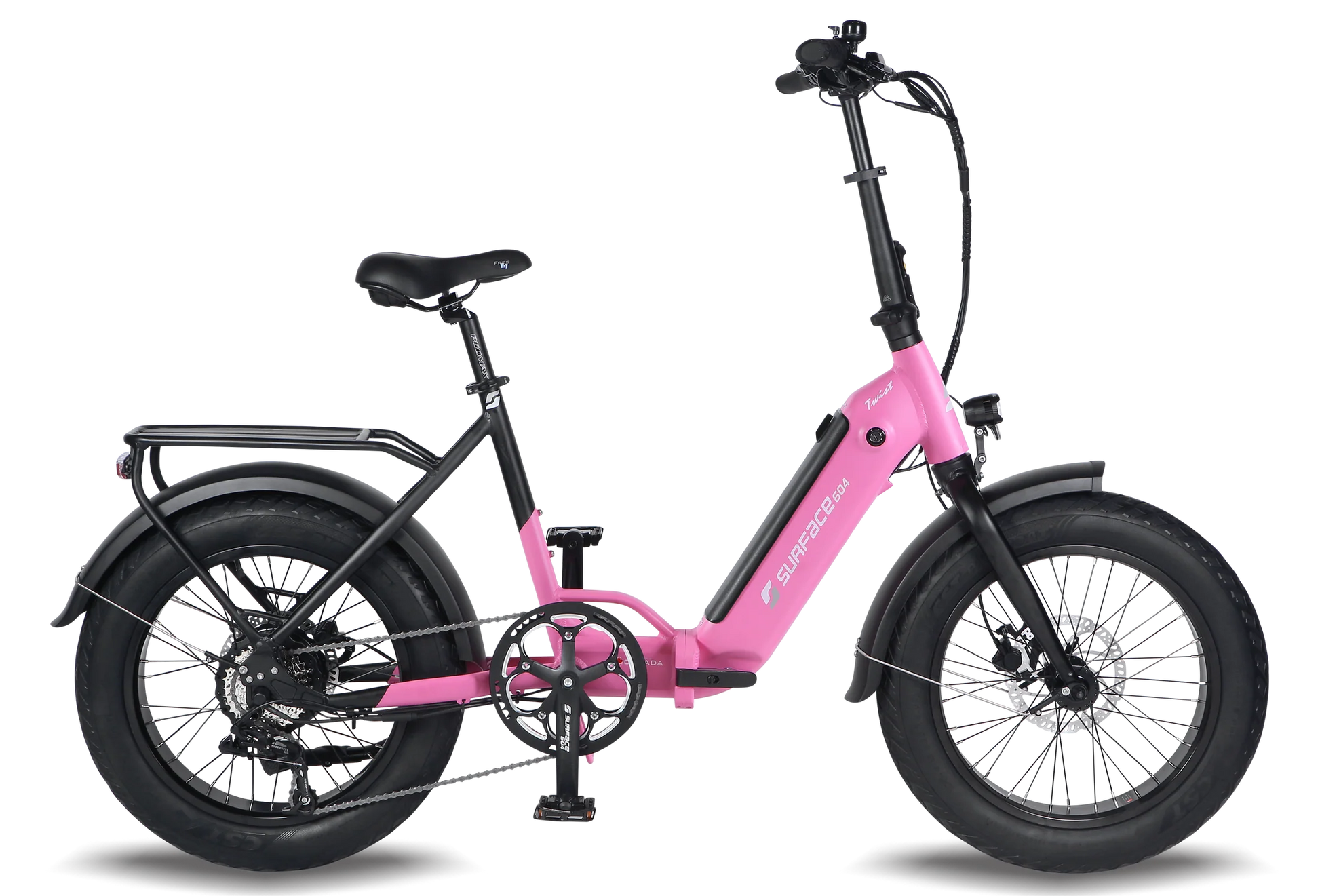

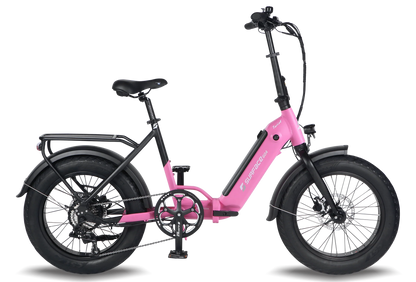

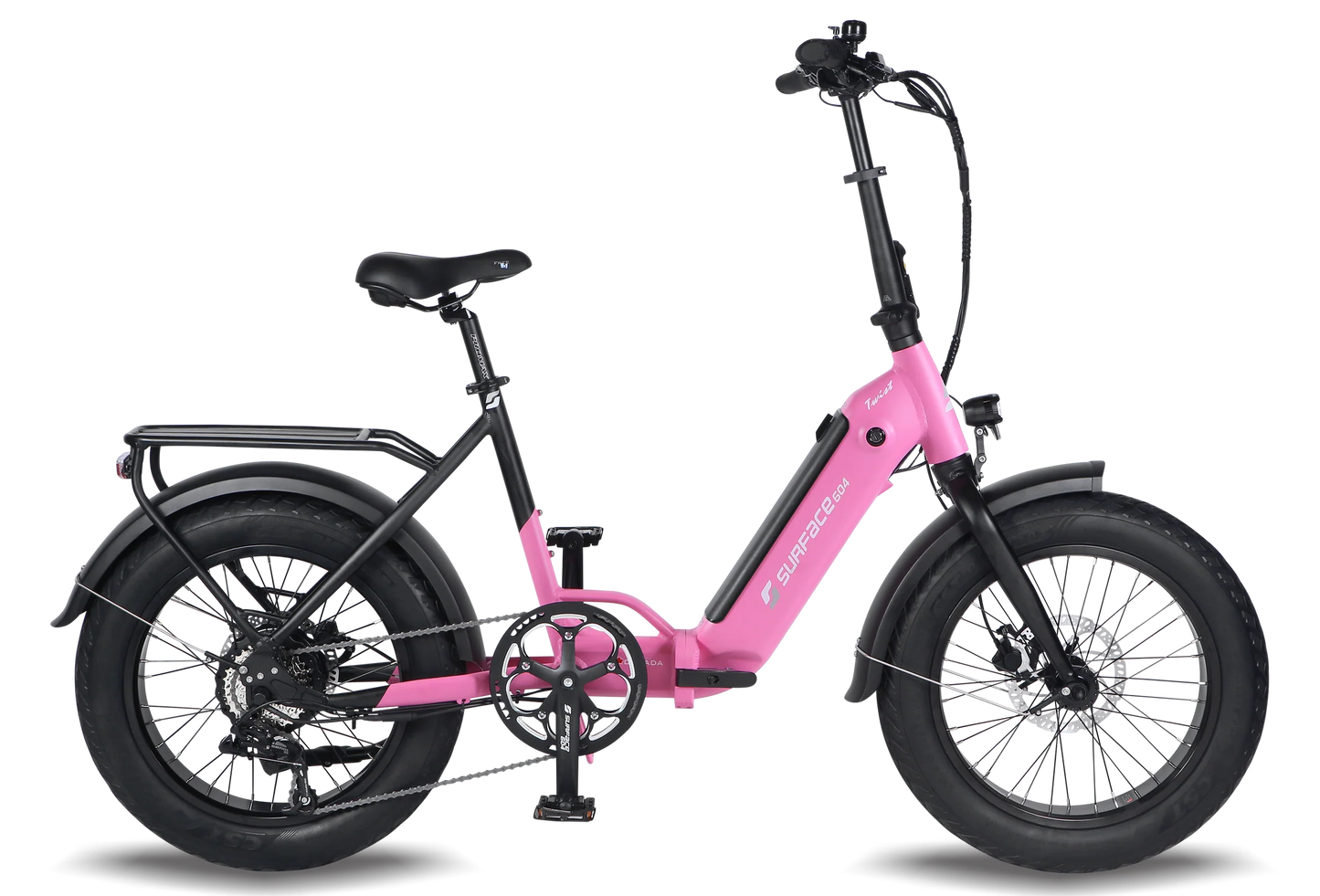

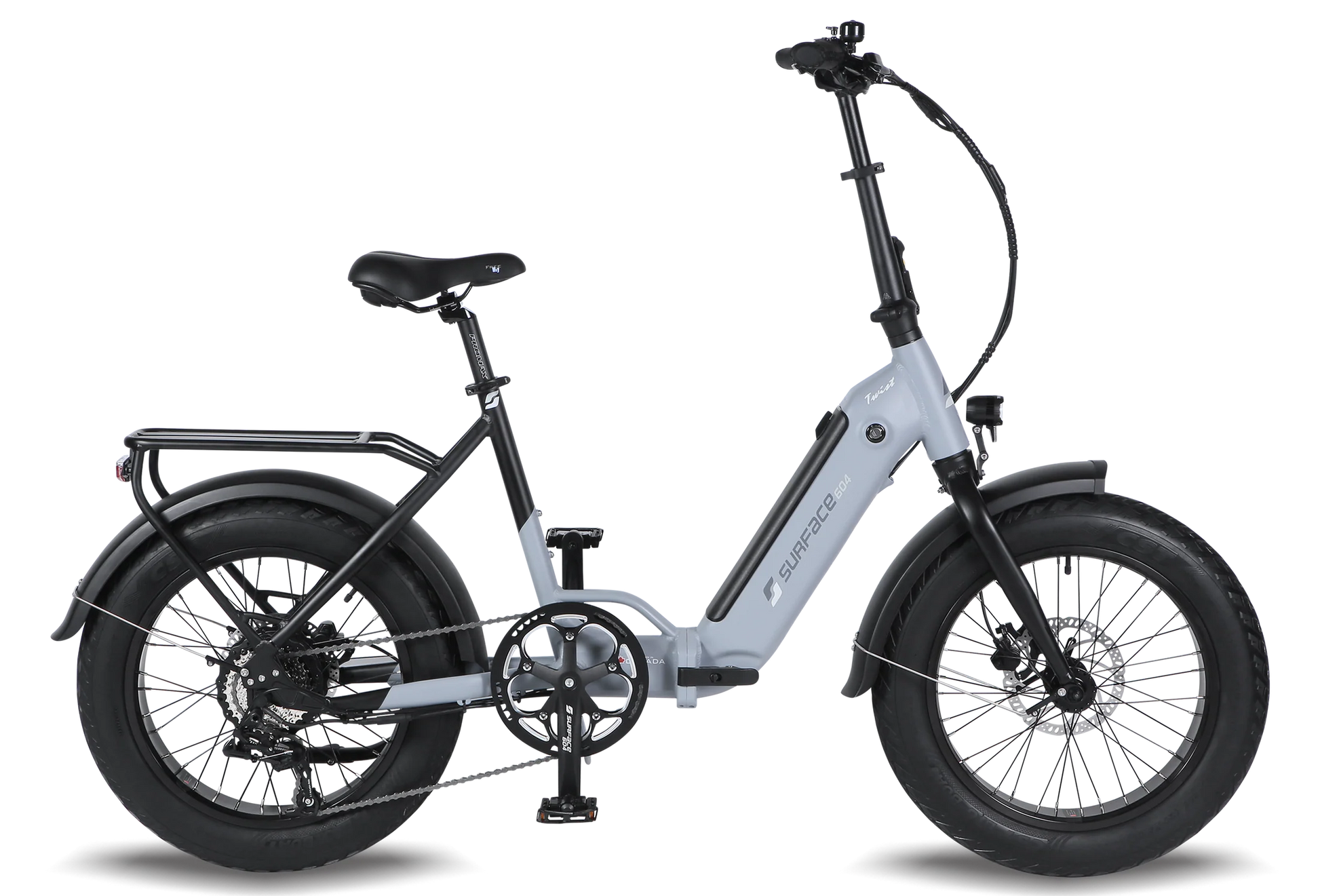

The Surface604 Twist 48V is a versatile folding electric bike designed for riders who want power, convenience, and portability in one compact package. With its low step-through folding frame and one-size-fits-all geometry, it's easy to store, transport, and take with you wherever you go.

Built with 20x4.0" fat tires and a reliable 500W Bafang motor, the Twist delivers a stable and capable ride across a variety of terrain — from city streets to gravel paths. Whether you're commuting, exploring, or packing it into your trunk for a weekend trip, this bike is ready to adapt. Equipped with full fenders and a rear luggage rack, it's designed for real-world use, helping you stay clean and carry what you need on every ride.

Why riders choose the Twist 48V:

• Folding design for easy storage and transport
• Fat tires for stability and all-terrain capability
• 500W Bafang motor (peaks at 750W) with 80Nm torque
• Rear rack for carrying gear or groceries
• Full fenders for cleaner riding in all conditions

Perfect for:

• Riders with limited storage space
• Travelers and RV users
• Commuters needing portability
• Casual riders wanting a compact, capable e-bike

Key Features:

• Motor: 500W Bafang Geared Rear Hub (peaks at 750W), 80Nm torque
• Battery: 48V 14Ah / 672Wh Samsung Lithium-Ion 18650 cells (integrated)
• Range: Up to 45 miles (72 km)
• Top Speed: Up to 20 mph (~32 km/h)
• Charge Time: 3–4 hours
• Frame: Folding, low step-through, 6061 aluminum alloy
• Tires: CST Big Boat, 20" x 4.0" fat tires
• Class: Class 2 (Class 3 ready)
• Max Capacity: Up to 285 lbs

Bike Components:

• Motor: 500W Bafang Geared Rear Hub Brushless (peaks at 750W)
• Drive Mode: Drop-out torque sensing pedal assist with thumb throttle
• Torque: 80Nm
• Controller: Surface604 designed, 12 MOS, 48V 500W 25A smart controller
• Battery: 48V 14Ah / 672Wh Samsung Lithium-Ion 18650 cells (integrated)
• Battery Charge Time: 3–4 hours
• Display: Surface604 Color LCD with USB jack, 3.5"
• Lights: BÜCHEL "Shiny 120" LED headlight + rear LED light
• Fork: Rigid cruiser front fork
• Frame: Folding, low step-through, 6061 aluminum alloy, internal cable routing
• Stem: Folding stem
• Derailleur: SRAM X5, 9 Speed, short cage
• Cassette: SRAM X5, 12-36T with 44T chainring
• Shift Levers: SRAM X5 Trigger Shift
• Brakes: Tektro Auriga Hydraulic Disc, post mount, with motor inhibitors
• Rotors: 180mm front & rear, 2.34mm thick
• Crankset: SAMOX 38T front sprocket, 170mm crank arms
• Bottom Bracket: SAMOX sealed
• Pedals: Wellgo platform with die-cast body
• Chain: KMC 9-Speed
• Tires: CST Big Boat, 20" x 4.0", all-purpose
• Saddle: Selle Royal Gel "Essenza Plus" with elastomer, adjustable up to 9°
• Seat Post Diameter: 30.4mm
• Standover Height: 16.5" (419mm)
• Rider Height: 5'2" – 6'6"
• Net Weight (with battery): 28.1 kg (62 lbs)
• Net Weight (without battery): 24.4 kg (53.8 lbs)
• Battery Weight: 3.63 kg (8.0 lbs)

In-Store Experience Upgrade:

Available in-store for an additional $150, which includes:

• Professional assembly and full safety check
• Personalized setup for comfort and performance
• Warranty support and service guidance
