*Special Order*

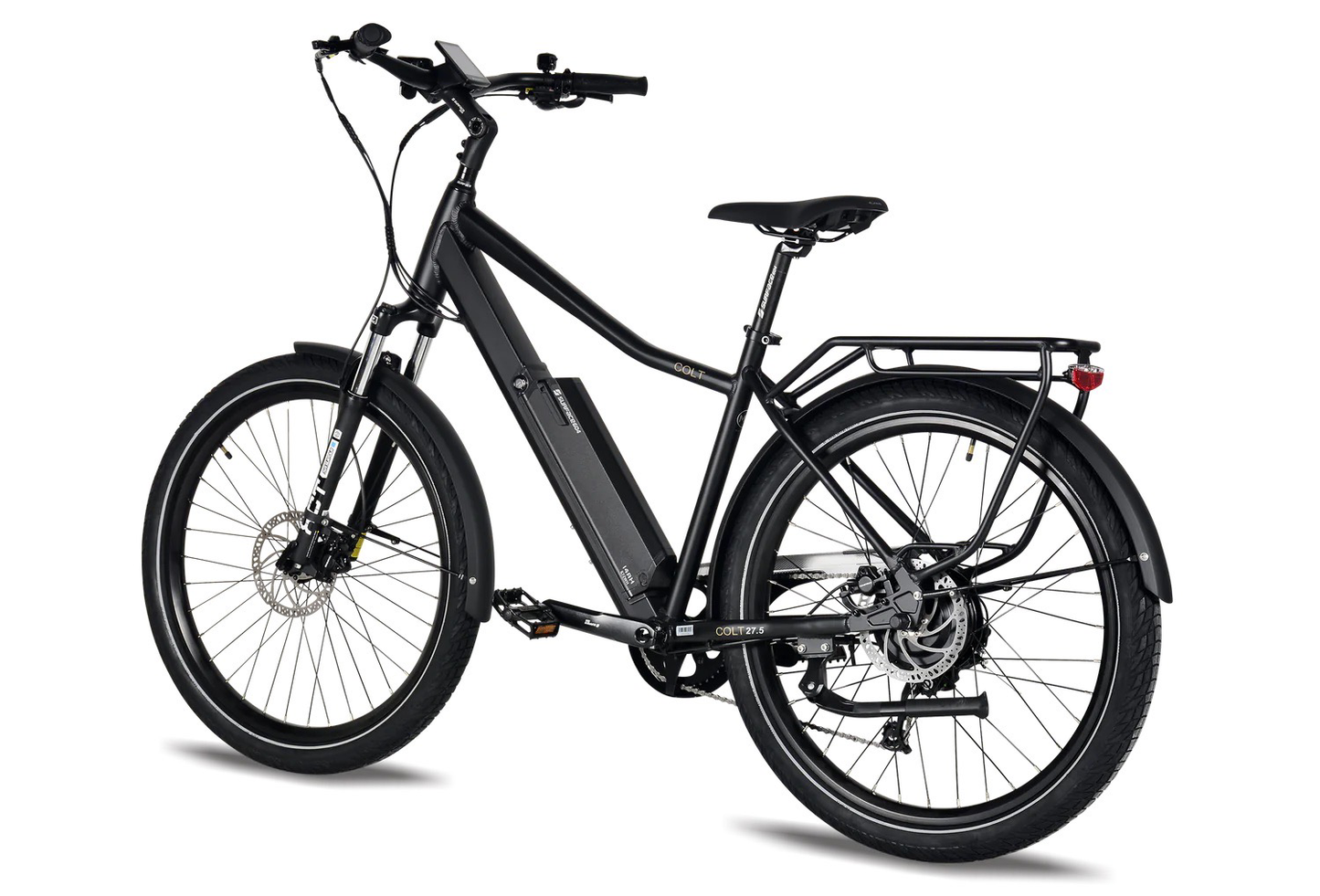

The Surface 604 Colt 48V is a versatile, do-it-all electric bike built for everyday commuting and smooth city riding. Designed to handle trips to the office, errands, and longer rides, it delivers a comfortable and reliable experience in a clean, classic frame.

With its upright riding position and agile handling, the Colt makes navigating city streets easy and enjoyable. The SR Suntour XCM front suspension helps absorb bumps and rough pavement, creating a smoother ride across a variety of urban conditions. Built with a durable 6061 aluminum frame, the Colt is both strong and lightweight, giving you confidence and control on every ride.

Why riders choose the Colt:

• Comfortable upright riding position
• Smooth ride with SR Suntour XCM front suspension (80mm)
• Strong and lightweight aluminum frame
• Reliable performance for daily commuting
• Balanced design for both city and longer rides

Perfect for:

• Daily commuters
• Riders wanting a dependable all-purpose e-bike
• City riders who value comfort and control
• Anyone looking for a simple, reliable ride

Key Features:

• Motor: 500W Bafang Geared Hub Brushless (peaks at 750W), 65Nm torque
• Battery: 48V 20Ah / 960Wh Samsung Lithium-Ion 21700 cells
• Range: Up to 65 miles (105 km)
• Top Speed: Up to 20 mph (~32 km/h)
• Suspension: SR Suntour XCM 27.5", 80mm travel
• Tires: 27.5" x 2.4" custom S604 Panaracer with puncture protection and reflective sidewalls
• Brakes: Tektro Auriga Hydraulic Disc, 180mm rotors
• Capacity: Up to 285 lbs
• Class: Class 2 (Class 3 ready)

Bike Components:

• Motor: 500W Bafang Geared Hub Brushless (peaks at 750W)
• Drive Mode: Drop-out torque sensing pedal assist with thumb throttle
• Torque: 65Nm
• Controller: Surface604 designed, 12 MOS, 48V 500W 25A smart controller
• Battery: 48V 20Ah / 960Wh Samsung Lithium-Ion 21700 cells
• Battery Charge Time: 3–4 hours
• Display: Surface604 Color LCD with USB jack, 3.5"
• Lights: BÜCHEL "Secu Forte" LED headlight (150 lumens) + BÜCHEL rear LED light
• Fork: SR Suntour XCM, 27.5", 80mm travel, quick release
• Frame: 6061 Aluminum Alloy, internal cable routing, post mount brakes
• Stem: SATORI Up2+, adjustable
• Handlebar: PROMAX Aluminum, 30mm rise, 15° backsweep, 700mm wide
• Derailleur: Shimano Alivio 9-Speed
• Cassette: Shimano 11-36T
• Shift Levers: Shimano Alivio
• Brakes: Tektro Auriga Hydraulic Disc, post mount, with motor inhibitors
• Rotors: 180mm front & rear, 2.34mm thick
• Crankset: SAMOX 42T front sprocket
• Bottom Bracket: SAMOX sealed
• Pedals: Wellgo platform with die-cast body
• Chain: KMC 9-Speed
• Tires: 27.5" x 2.4" custom S604 Panaracer with puncture protection and reflective sidewalls
• Saddle: Selle Royal Gel "Essenza Plus" with elastomer, adjustable up to 9°
• Seat Post Diameter: 30.4mm
• Battery Weight: 4.65 kg (10 lbs)
• Net Weight: 27.75 kg (61 lbs)
• Frame Sizes: S/M – 17.5" | M/L – 19.5"
• Rider Height: S/M: 5'2"–5'7" | M/L: 5'8"–6'6"
• Standover Height: S/M: 28.5" (724mm) | M/L: 30" (762mm)

In-Store Experience Upgrade:

Available in-store for an additional $150, which includes:

• Professional assembly and full safety check
• Personalized setup for comfort and performance
• Warranty support and service guidance
