*Special Order*

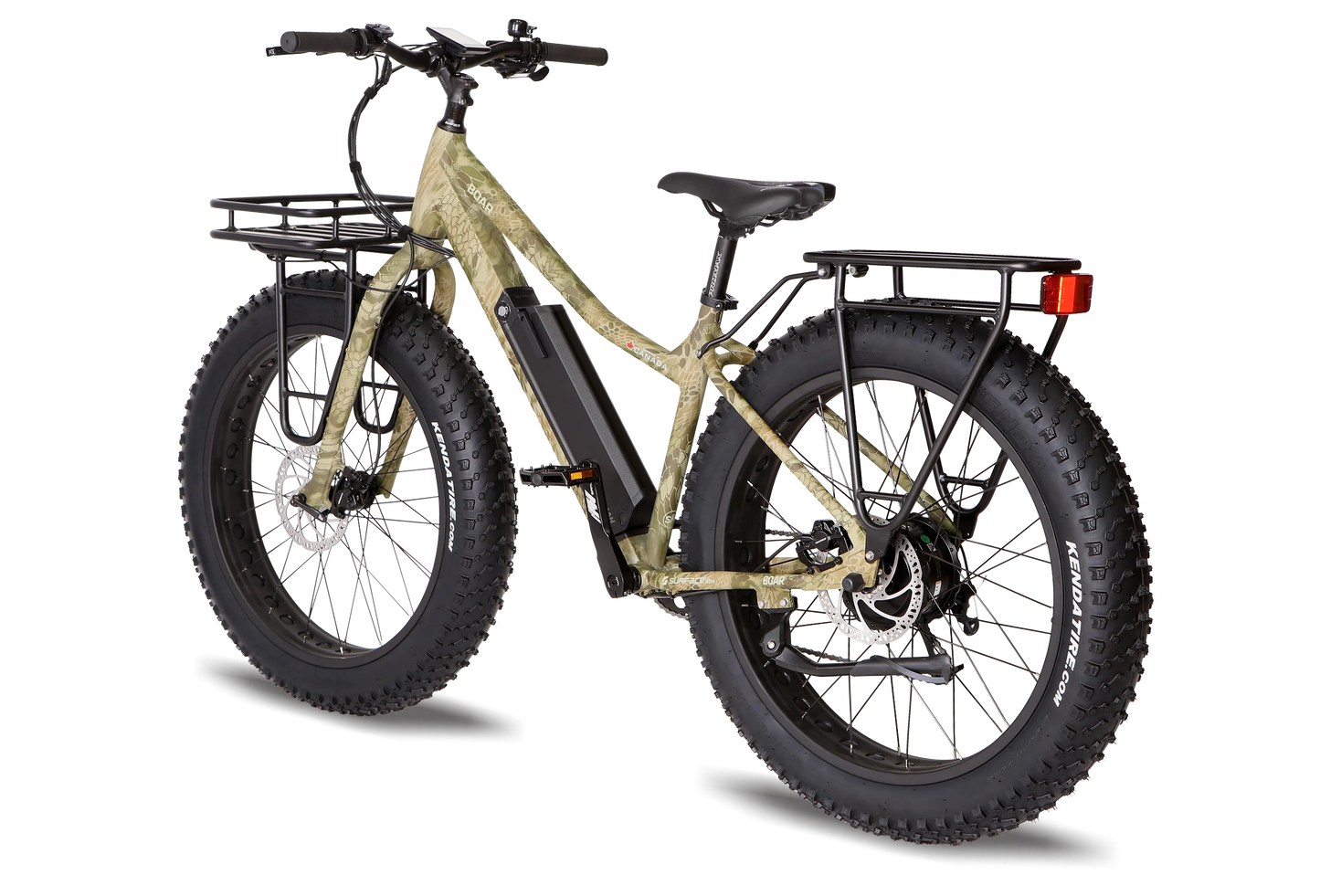

The Surface 604 Boar Hunter is designed for riders who need a quiet, capable, and reliable electric bike for outdoor adventures. Built for hunting, fishing, and backwoods travel, it delivers the power and control needed to move through rugged environments with confidence.

With a stable frame and smooth electric assist from a 500W Bafang motor, the Boar Hunter allows you to travel quietly across trails and remote terrain without disturbing your surroundings. Equipped with 180mm hydraulic disc brakes, it provides strong and dependable stopping power when you need it most. Front and rear cargo racks add practical utility, making it easy to carry equipment, supplies, or outdoor gear.

Why riders choose the Boar Hunter:

• Quiet electric assist for stealth outdoor travel
• Front and rear racks for carrying gear
• Strong 180mm hydraulic disc brakes
• Stable ride for uneven terrain
• Built for outdoor and utility use

Perfect for:

• Hunters and anglers
• Backwoods and trail riders
• Outdoor explorers needing gear transport
• Riders wanting a quiet utility e-bike

Key Features:

• Motor: 500W Bafang Fat Bike Specific Geared Hub (peaks at 750W), 80Nm torque
• Battery: 48V 20Ah / 960Wh Samsung Lithium-Ion 21700 cells
• Range: Up to 65 miles (105 km)
• Top Speed: 20 mph (~32 km/h)
• Tires: Kenda Juggernaut Sport, 26" x 4.50"
• Brakes: Tektro Auriga Hydraulic Disc, 180mm rotors
• Capacity: 285 lbs (130 kg)
• Class: Class 2 (Class 3 ready)

Bike Components:

• Motor: 500W Bafang Fat Bike Specific Geared Hub (peaks at 750W)
• Drive Mode: Drop-out torque sensing pedal assist with thumb throttle
• Torque: 80Nm
• Controller: Surface604 designed, 12 MOS, 48V 500W 25A smart controller
• Battery: 48V 20Ah / 960Wh Samsung Lithium-Ion 21700 cells
• Battery Charge Time: 3–4 hours
• Display: Surface604 Color LCD with USB jack, 3.5"
• Lights: BÜCHEL "Shiny 120" LED headlight, pre-wired for rear stop light
• Fork: Proprietary custom 6061 aluminum, straight steerer
• Frame: 6061 Aluminum Alloy, straight steerer headtube, internal cable routing, post mount brakes
• Stem: Ergotec Bass eMTB specific, 31.8mm
• Handlebar: PROMAX Aluminum, 670mm wide, 6° sweep, 35mm rise, 31.8mm clamp
• Derailleur: SRAM X5 9-Speed
• Cassette: SRAM 9-Speed, 12-34T
• Shift Levers: SRAM X5 Trigger Shift
• Brakes: Tektro Auriga Hydraulic Disc, post mount, 180mm rotors, with motor inhibitors
• Crankset: SAMOX 36T front sprocket, 170mm crank arms
• Bottom Bracket: SAMOX sealed
• Pedals: Wellgo platform with die-cast body
• Chain: KMC 9-Speed
• Tires: Kenda Juggernaut Sport, 26" x 4.50"
• Saddle: SR Selle Royal "Nebula" high-density silicone gel
• Seat Post Diameter: 30.4mm
• Battery Weight: 4.65 kg (10 lbs)
• Net Weight: 22.7 kg (50 lbs)
• Frame Sizes: S/M – 17.5" | M/L – 19.5"
• Rider Height: S/M: 5'2"–5'7" | M/L: 5'8"–6'6"
• Standover Height: S/M: 28.5" (724mm) | M/L: 30" (762mm)

In-Store Experience Upgrade:

Available in-store for an additional $150, which includes:

• Professional assembly and full safety check
• Personalized setup for comfort and performance
• Warranty support and service guidance
