Model Update Notice:

This model has been updated and replaced by the Himiway D5 2.0 ST. The information below refers to the previous generation (D5 Zebra ST). For the latest version with updated design and features, please view the Himiway D5 2.0 ST.

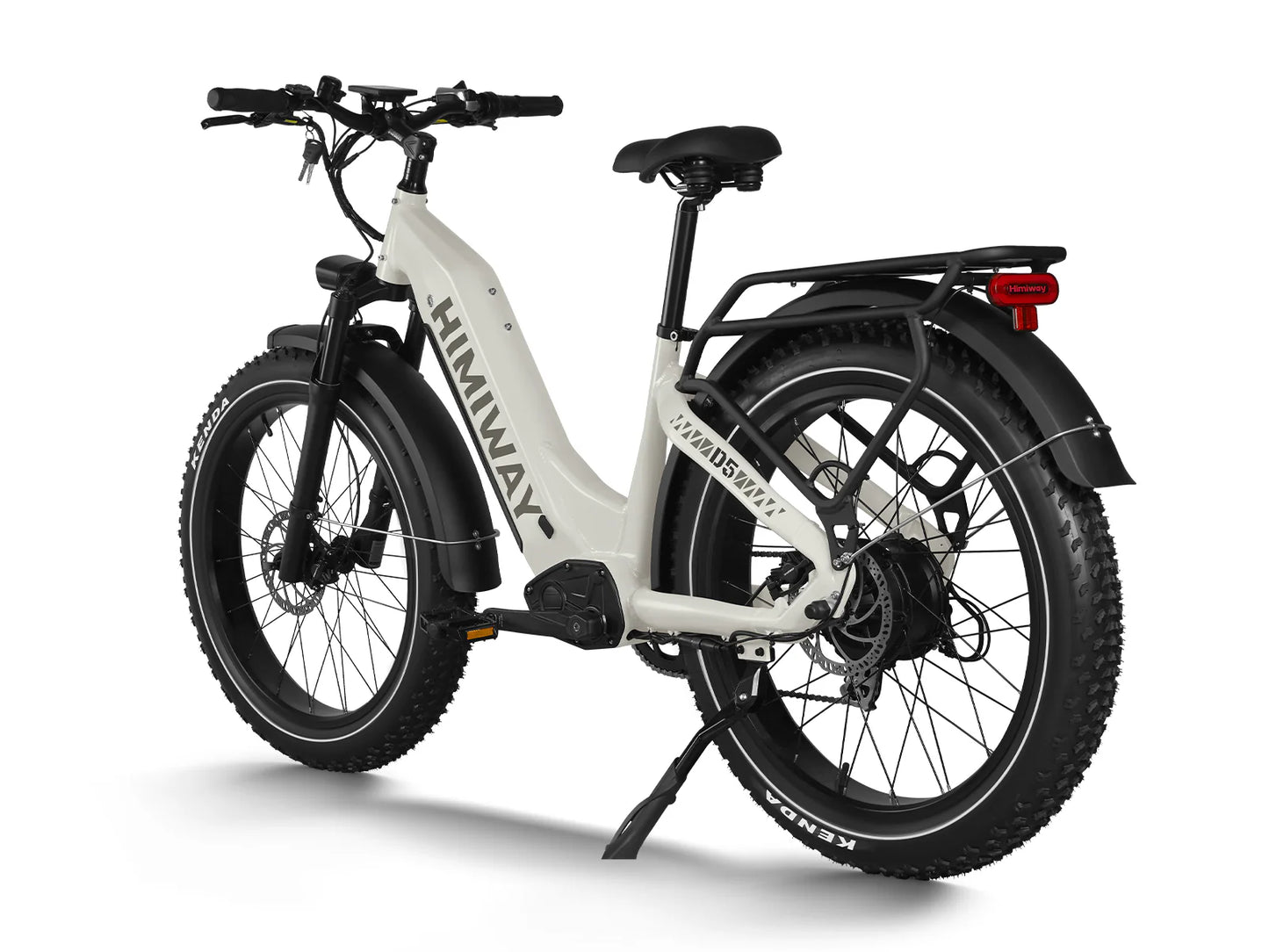

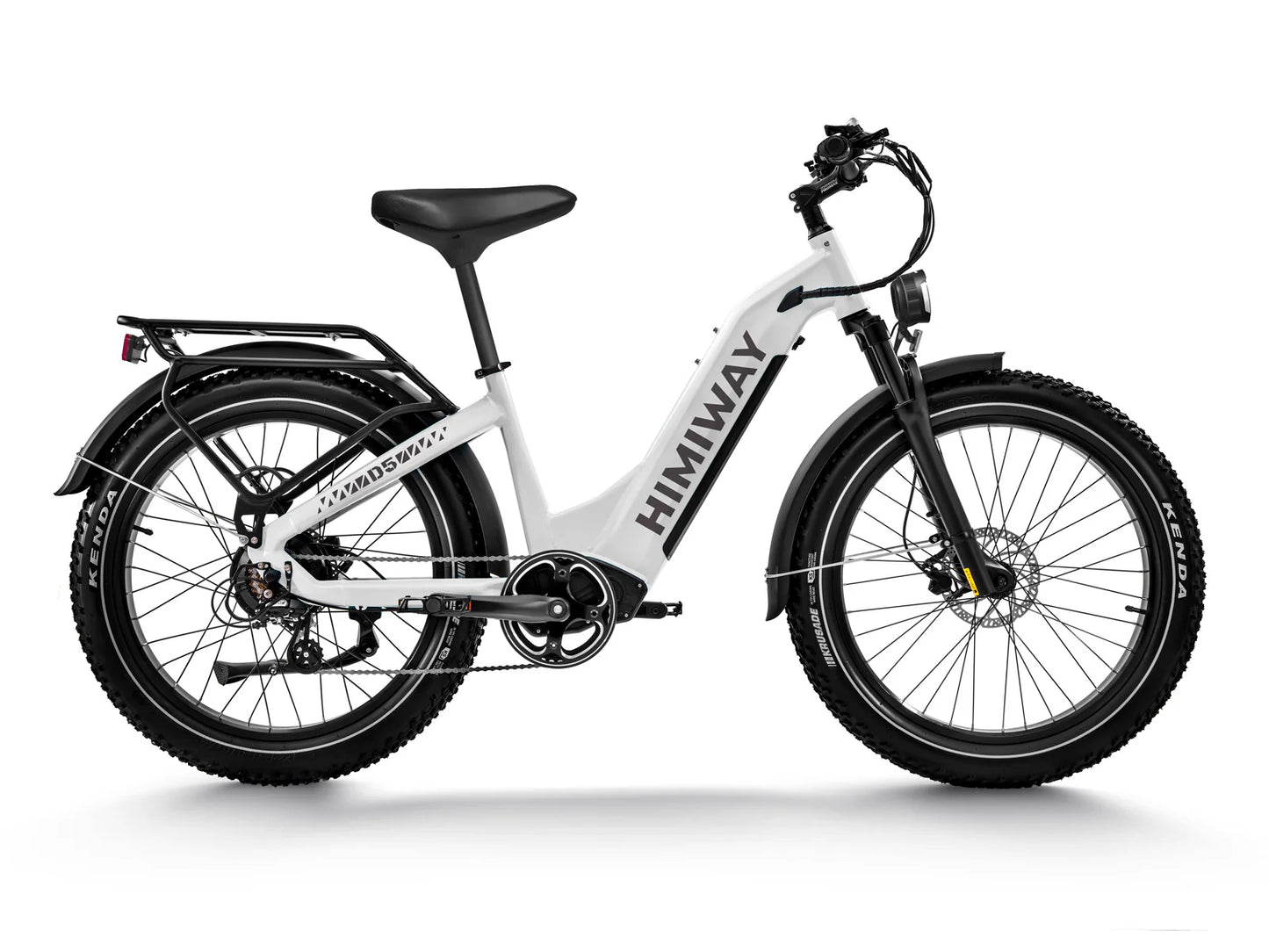

The Himiway D5 Zebra ST is a powerful and comfortable step-through fat tire electric bike designed for riders who want versatility across all types of terrain.

Built with wide fat tires and a stable frame, the Zebra ST is capable of handling snow, sand, gravel, and city streets with confidence. Its step-through design makes mounting and dismounting easy, while maintaining a strong and durable frame structure for stability and control.

Powered by a reliable motor and high-capacity battery system, the D5 Zebra ST delivers strong performance and long-range capability, making it suitable for both commuting and off-road adventure.

Why riders chose the Zebra ST:

• Fat tires for all-terrain riding (snow, sand, gravel, city)

• Step-through frame for easy access

• Strong motor for hills and longer rides

• Long-range battery for extended use

• Stable and comfortable riding experience

Perfect for:

• Riders wanting an all-terrain step-through e-bike

• Commuters in mixed weather conditions

• Adventure riders exploring off-road paths

• Beginners wanting stability and power

Key Features:

• Motor: High-powered 750W hub motor

• Battery: Long-range lithium-ion battery

• Frame: Step-through fat tire design

• Tires: Wide all-terrain fat tires

• Range: Extended range capability

• Use: City + trail + mixed terrain

Bike Components:

• Total length:  80.1 inch

• Handlebar height:  45.6 inch (0°)

• Handlebar width:  26.7 inch

• Wheelbase:  49 inch

• Wheel diameter:  28.7 inch

• Minimum seat height:  20 inch

• Seat adjustment height:  5.9 inch

• Chain stay length:  20.8 inch

• Frame stack:  21.7 inch

• Frame reach:  16.6 inch

• Effective top tube:  23.6 inch

• Head tube length:  5.9 inch

• Head angle:  70°

• Standover height:  19.3 inch

• Frame: 6061 Aluminum frame

• Fork:  RST GUIDE-26 Travel 100mm Alloy front suspension

• Headset:  GINEYEA A16E-1

• Rear suspension:  Multi-Link, 130mm Travel, Spring Rated at 800 lbs

• Front wheel:  Rim:26*4.0 13G 36H Spoke:13G 254L STAINLESS(304M) Hub:3/8*13G*135*185W

• Rear wheel:  Rim:26*4.0 13G 36H Spoke:12G 218L STAINLESS(304M) Hub:Annada hub motor

• Tires:  Maxxis Minion FBF / FBR 26 x 4.0

• Battery:  48V15Ah Samsung/LG lithium battery,UL2271

• Motor:  750W 90Nm Hub motor

• Display:  3.5-inch, Full Color, 320x480 Resolution

• Throttle:  Thumb Throttle

• Sensor:  Torque / Cadence Switchable

• Crankset:  52T x 170mm

• Freewheel:  8 Speed KDF-852 13-14-16-18-20-24-28-32T

• Chain:  Anti-rust KMC Z8.3-EPT 130L

• Groupset:  SHIMANO 8 Speed

• Front brake:  Tektro HD-E3520 hydraulic brake

• Rear brake:  Tektro HD-E3520 hydraulic brake

• Rotors:  Tektro TR180-52 F:180mm R:180mm

• Stem:  Ф31.8mm *90mm 0-60° Adjustable

• Handlebar:  HB-060BT 22.2*31.8*680mm

• Saddle:  DDK memory foam saddle 268x260mm

• Seatpost:  33.9*270mm Alloy Seatpost

• Pedal:  Alloy pedal

• Headlight:  LED 48V 4W 120LUX

• Taillight:  Integrated Turn Signal ( Steady Warning \ Brake Highlight \ Turn Signal Indicators \ Hazard Warning Flashers )

• Kickstand: Heavy-duty aluminum kickstand

• Range: 65 miles

• Controller:  48V/22A

• Charger:  US standard 3.0 A smart charger

• Rider height:  5′3″ ~ 6′5″

• Weight:  92 lb. (with battery)

• Max. payload capacity:  400 lb.


In-Store Experience Upgrade:

Available in-store for an additional $150, which includes:

• Professional assembly and full safety check

• Personalized setup for comfort and performance

• Warranty support and service guidance
