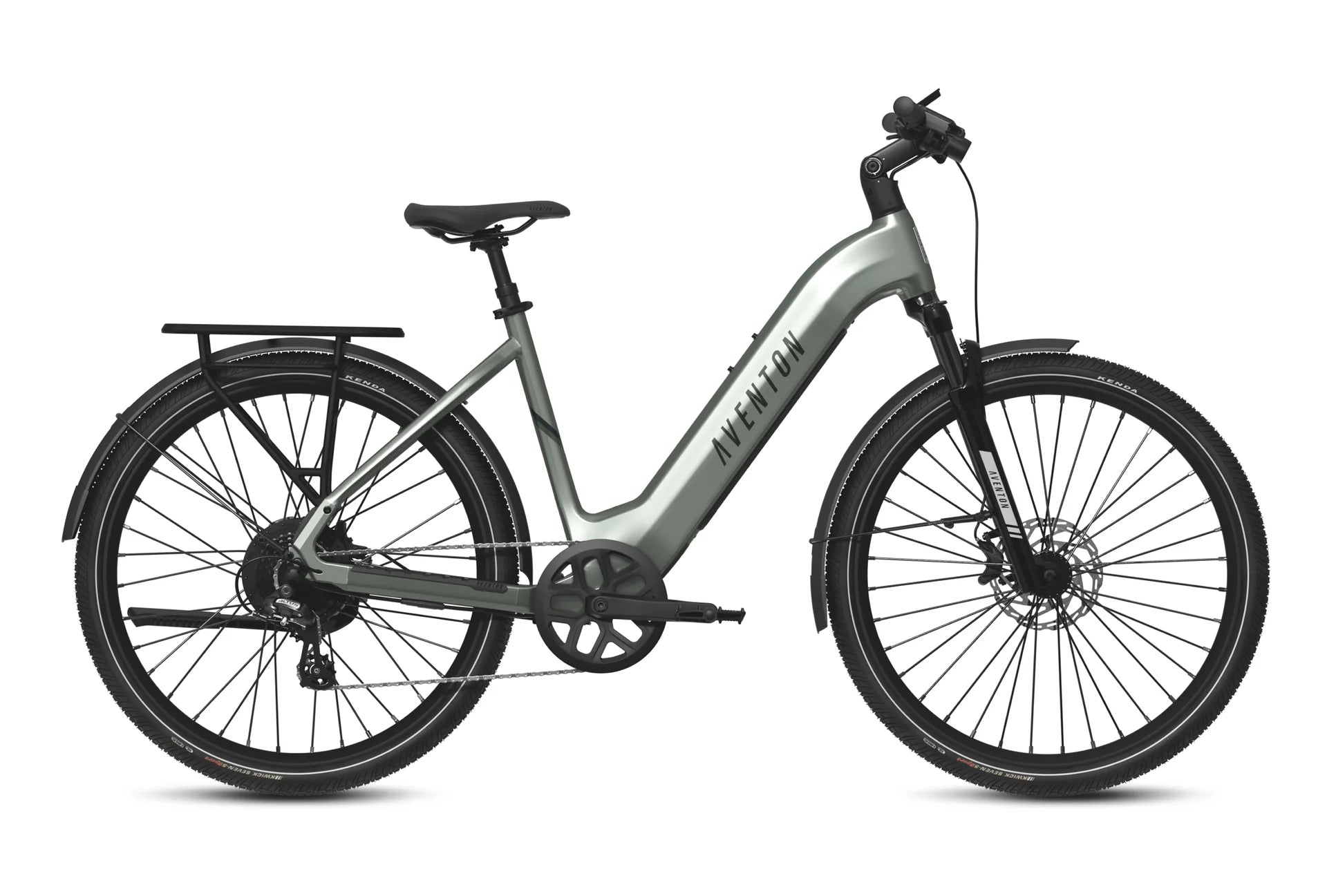

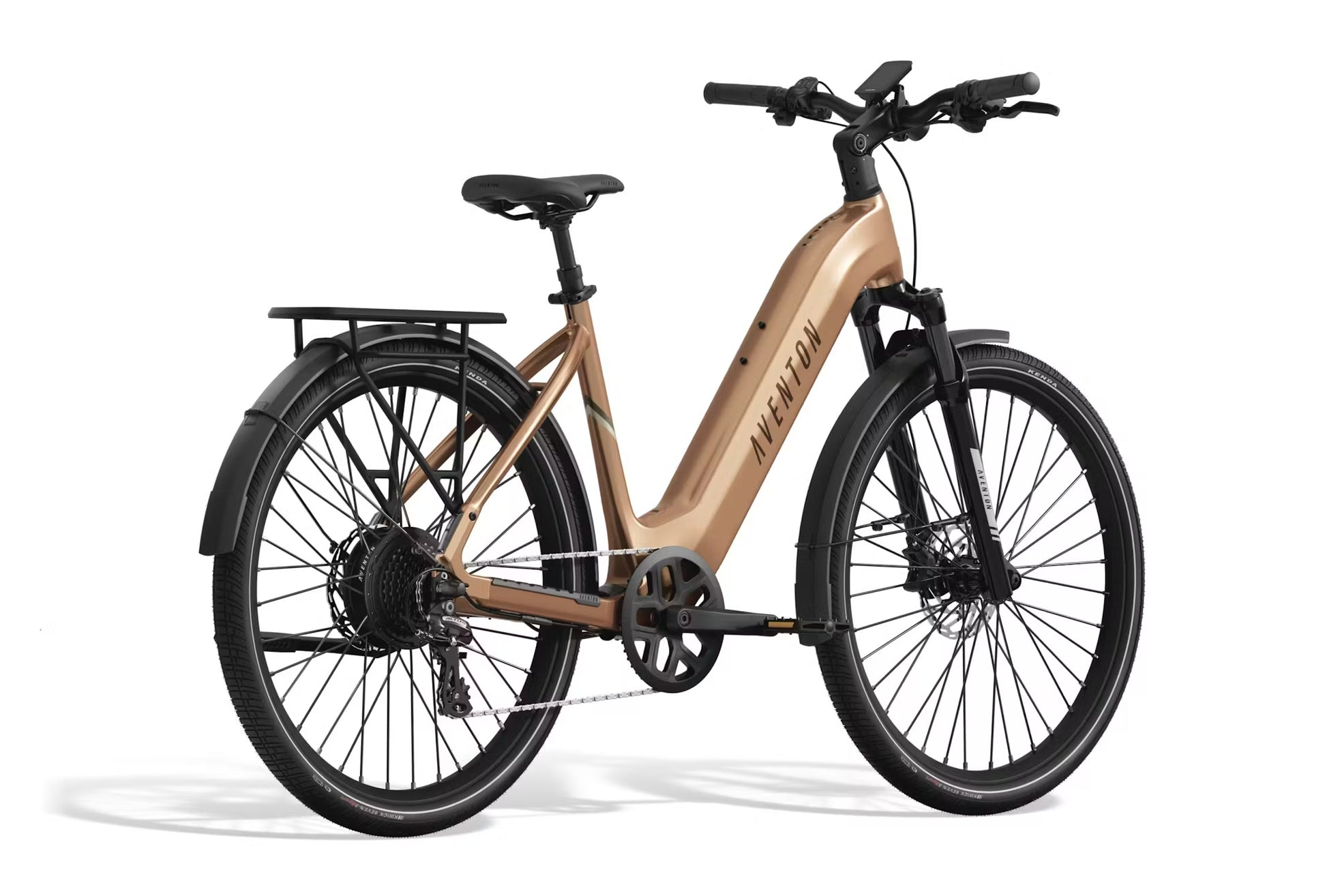

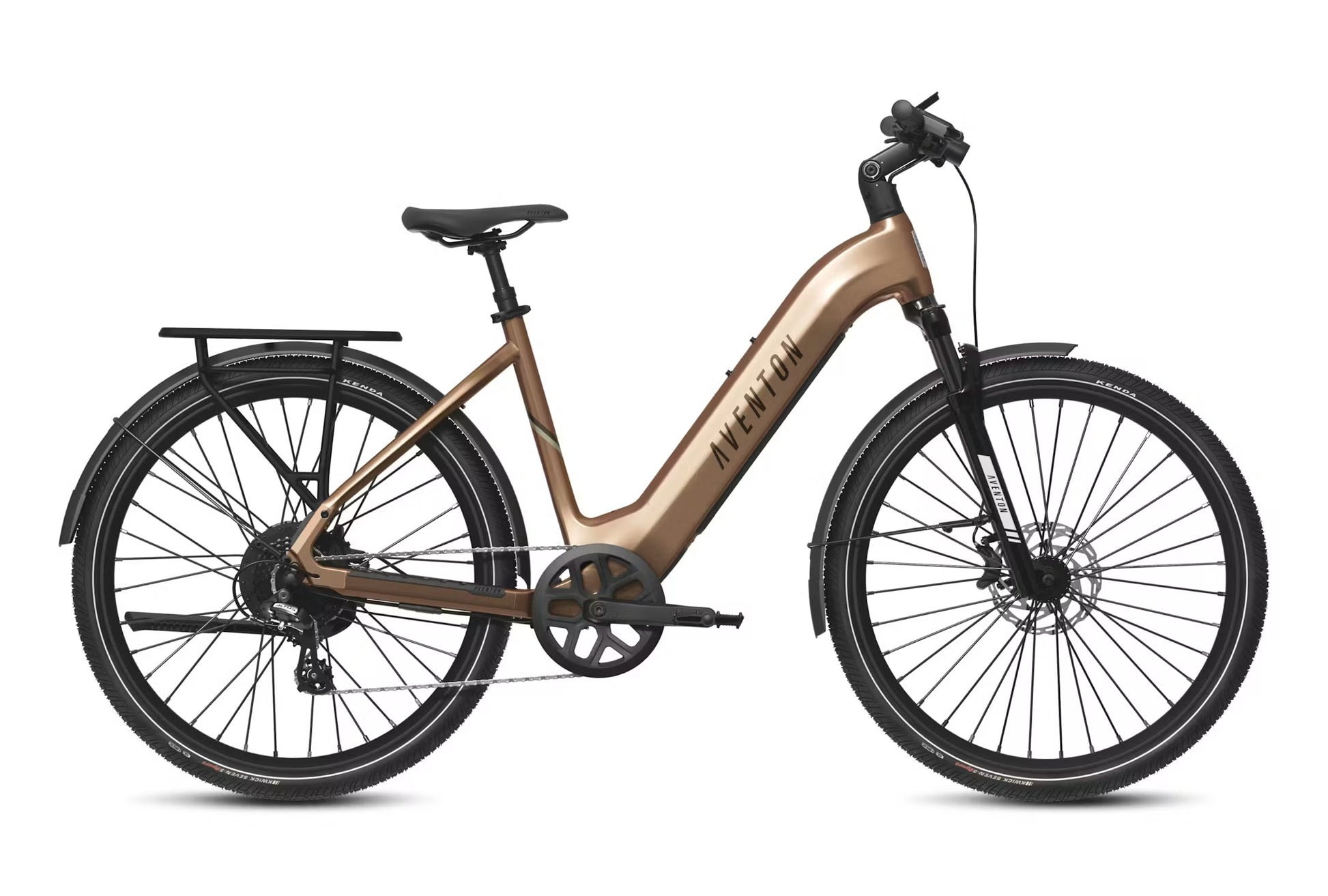

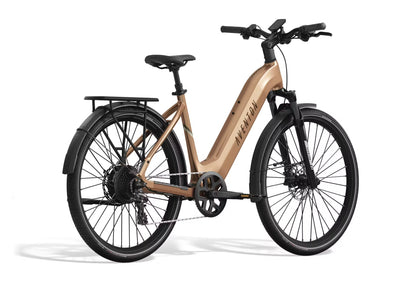

The Aventon Level 3 Step-Through is built to transform your daily commute into a smoother, more comfortable, and more efficient ride. Designed for everyday practicality, it comes fully equipped with everything you need to replace short car trips with ease.

With its step-through frame and comfortable riding geometry, the Level 3 is easy to mount and designed for all-day comfort. A front suspension fork and suspension seatpost help absorb bumps and rough roads, creating a more relaxed and controlled riding experience. Outfitted with essential commuter features like a rear rack and full fenders, this bike is ready for real-world use — whether you're heading to work, running errands, or riding in changing weather conditions.

The Level 3 also features Aventon's advanced ACU technology, offering GPS tracking, auto-lock, motion detection, and an integrated alarm system — giving you added security and peace of mind wherever you go. With Ride Tune capabilities and refined motor performance, it delivers improved efficiency and extended range, helping you ride farther with confidence.

Why riders choose the Level 3:

• Step-through frame for easy access
• Comfortable ride with front suspension + suspension seatpost
• Fully equipped for commuting (rack + fenders)
• ACU smart technology for security and tracking
• Improved range and performance over previous models

Perfect for:

• Daily commuters
• Riders replacing short car trips
• Urban riders wanting comfort and convenience
• Anyone looking for a fully equipped, ready-to-ride e-bike

Key Features:

• Frame: Step-through commuter design
• Suspension: Front fork (80mm travel) + suspension seatpost (50mm travel)
• Motor: 36V, 500W sustained (864W peak), 60Nm torque
• Battery: Removable 36V, 20Ah, 733Wh, LG 21700 cells
• Range: Up to 70 miles

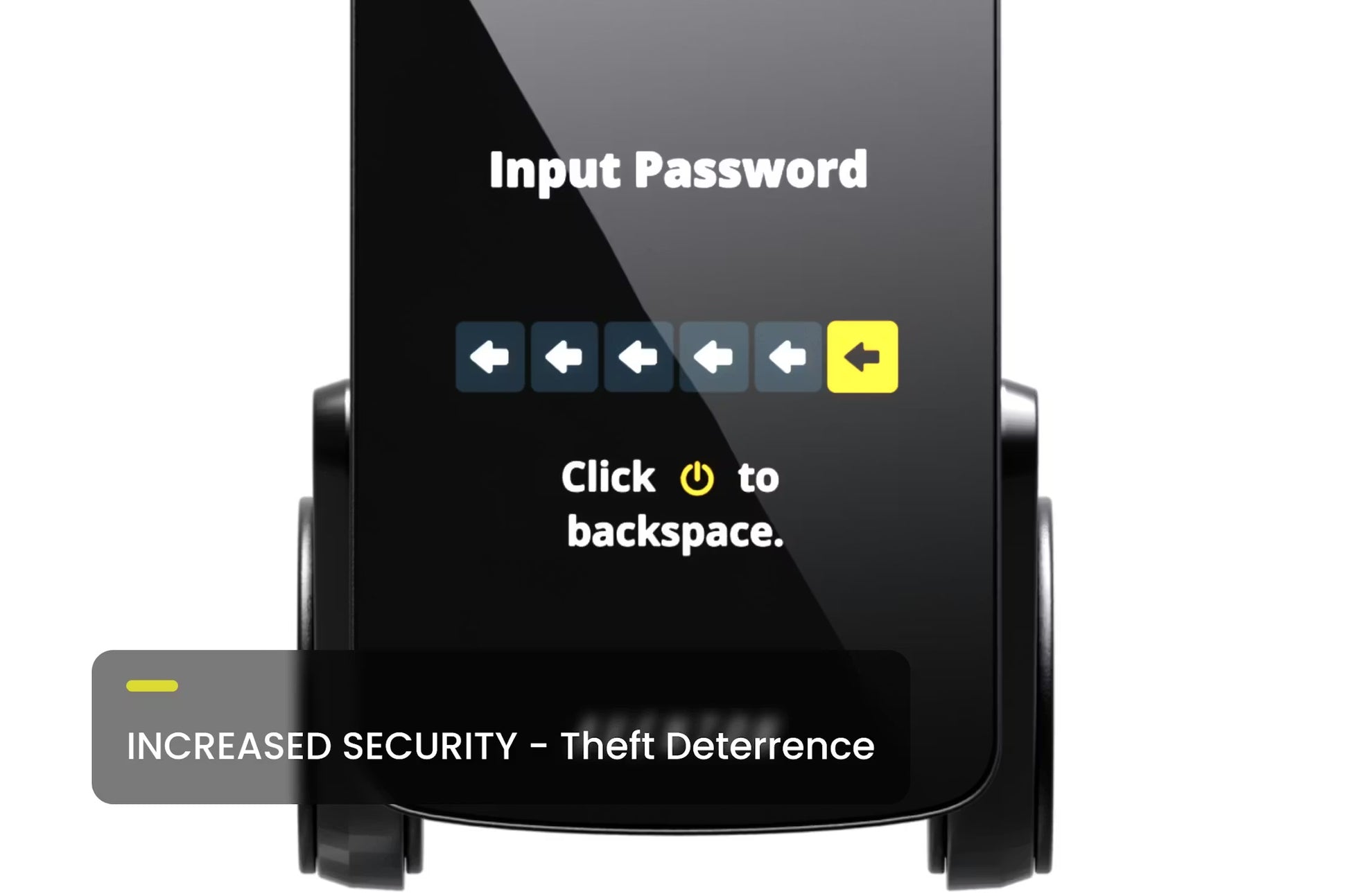

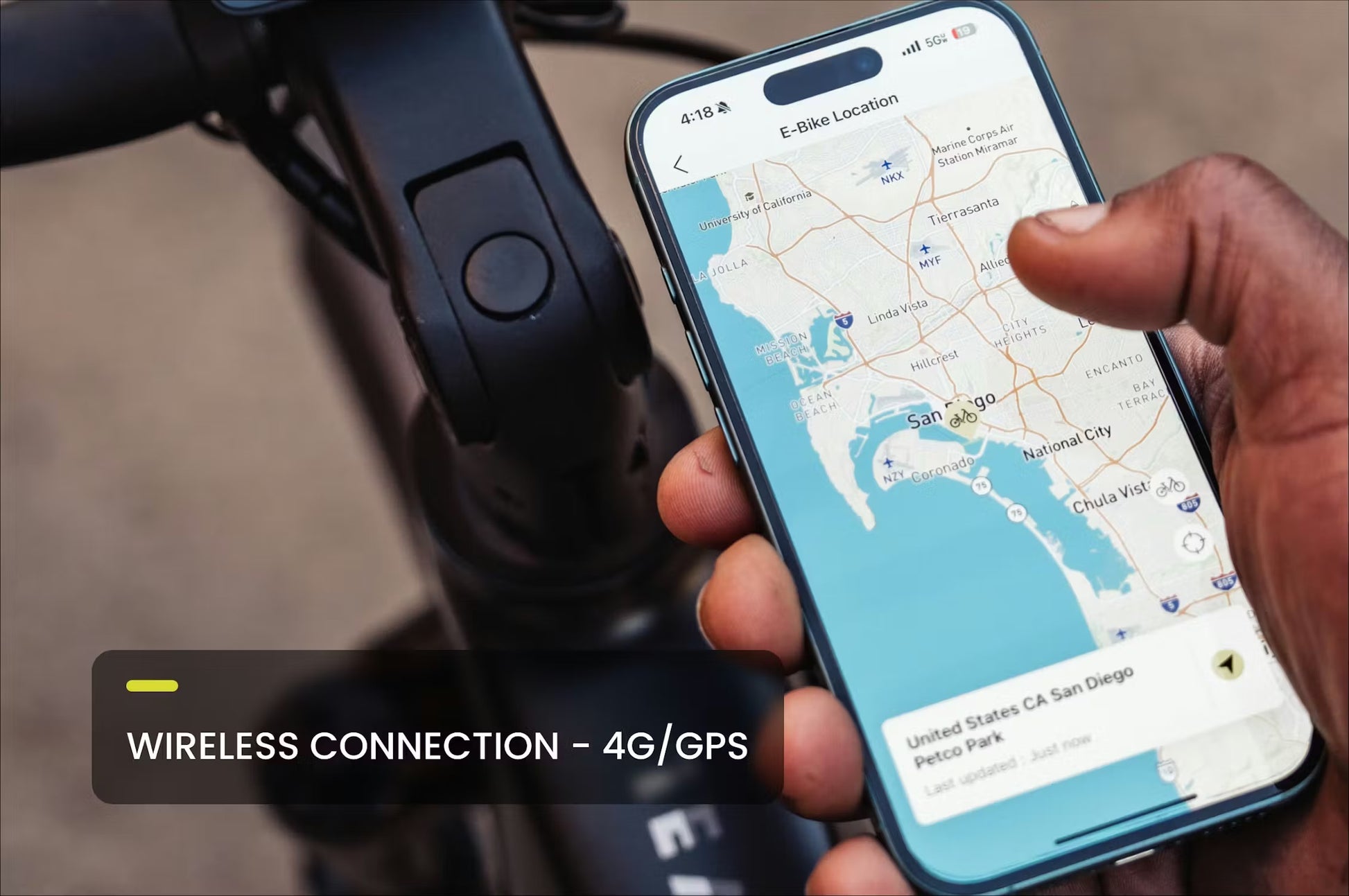

• Technology: ACU system (GPS, auto-lock, motion detection, alarm)
• Performance: Ride Tune optimization for improved range
• Class: Class 2

Bike Components:

• Weight: 67 lbs

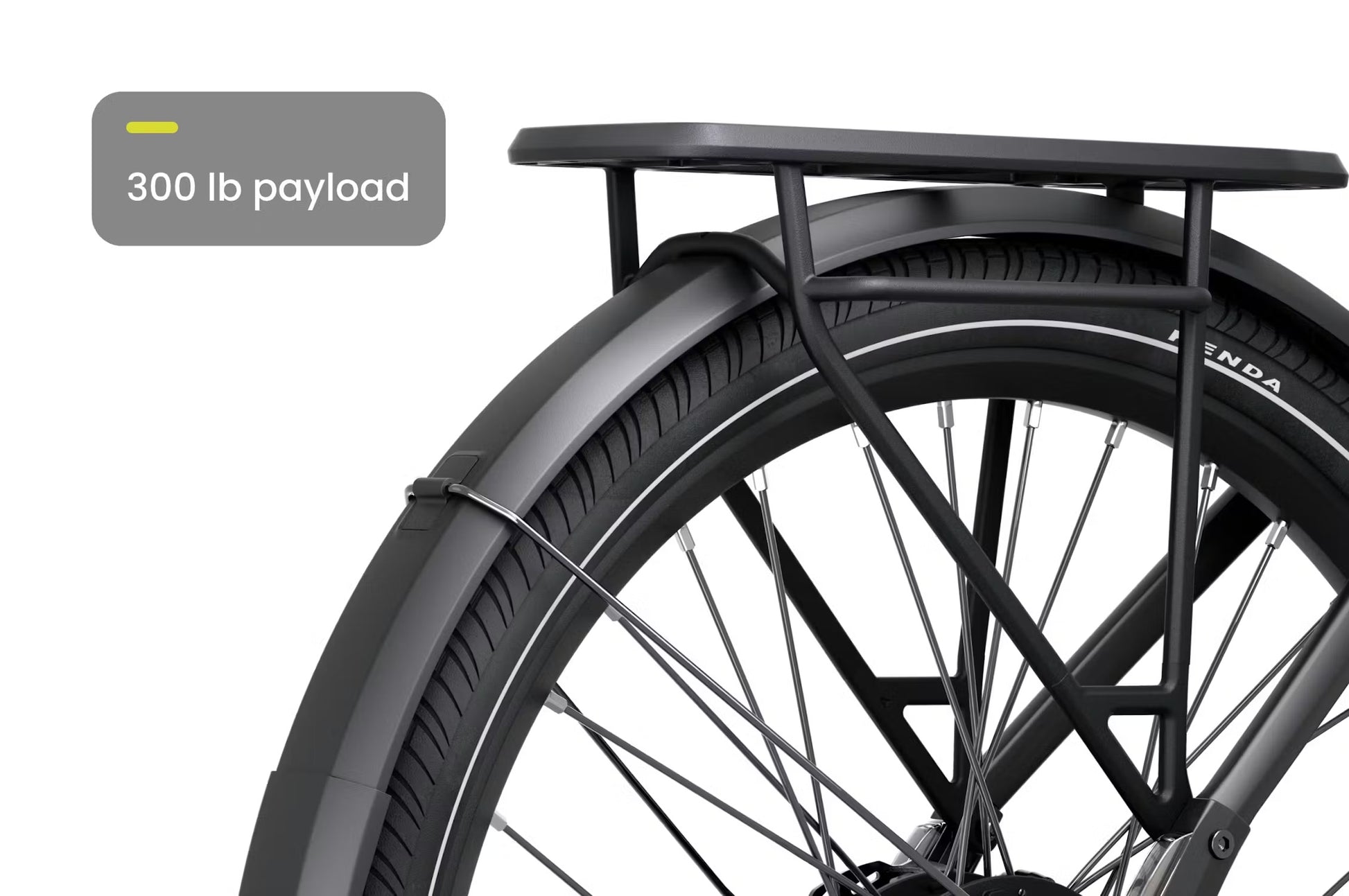

• Total Weight Limit: 300 lbs
• Rider Height: 4'11" – 6'1"
• eBike Class: Class 2
• Ideal Use: Commuting
• Pedal Assist: 3 Levels (with Ride Tune Customization)
• Water Resistance: Bike – IPX5 | Components – IPX6
• Safety Certifications: UL 2849
• Battery Safety Certifications: UL 2271
• Frame: 6061 Aluminum, Gravity Cast Front Triangle, Step-Through
• Fork: Aventon Suspension Fork, 80mm travel with lockout, coil spring, 15x100mm thru-axle, 43mm offset
• Rear Spacing: 142mm
• Fork Spacing: 110mm
• Front Wheel: 27.5", 13g, 36-hole, double wall aluminum, thru axle, Schrader valve
• Rear Wheel: 27.5", 12g, 36-hole, double wall aluminum, nutted hub drive motor, Schrader valve
• Tires: Kenda Kwick Seven-5 Sport K1052-006, 27.5x2.20
• Motor Torque: 60Nm
• Display: Aventon BC280
• Battery Weight: 8.7 lbs
• Controller: 36V, 24A

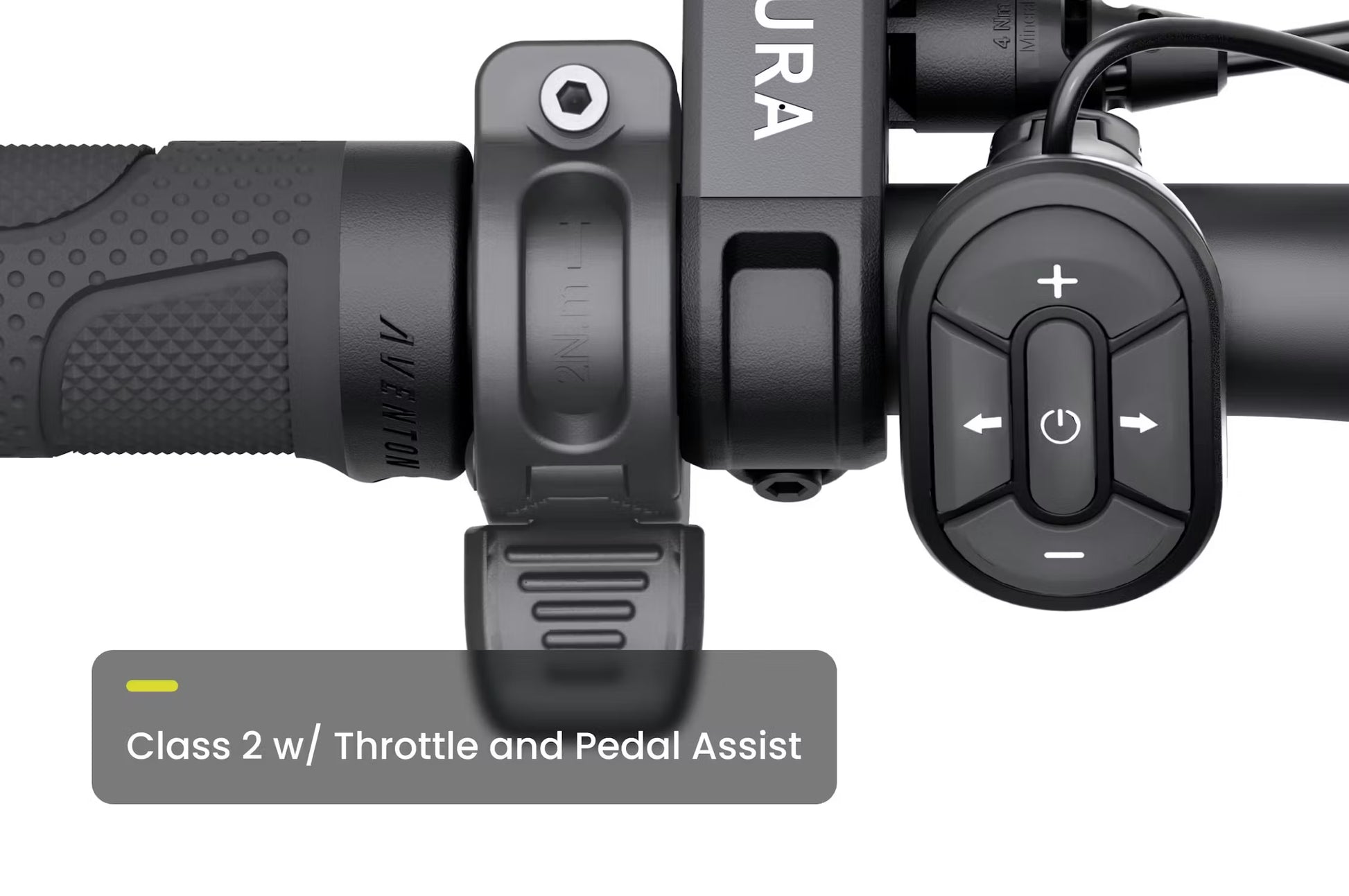

• Throttle: Aventon LH Handlebar Mounted
• Sensors: Double Sided Bottom Bracket Torque Sensor
• Charger: 36V Output: 42V / 4A
• Charging Time (0–100%): 5 hours
• Lights: Front and rear lights integrated
• Front Brake: Magura AT-2 / Tektro HD-E3520 Hydraulic Disc Brake
• Rear Brake: Magura AT-2 / Tektro HD-E3520 Hydraulic Disc Brake
• Front Brake Rotor: Magura MDR-A 180mm 6 bolt / Tektro 180mm 6 bolt
• Rear Brake Rotor: Magura MDR-A 180mm 6 bolt / Tektro 180mm 6 bolt
• Rear Derailleur: Shimano Altus RD-M310
• Shifter: Shimano 8 Speed Trigger SL-M315-8R
• Chain: 7/8 Speed, 120L
• Cassette: Shimano CS-HG200-8, 8 Speed, 12-32T
• Chainring: 48T
• Crankset: 3pc, 170mm crank arm
• Bottom Bracket: Square Taper, Sealed, double sided Torque Sensor 83mm x 158.5mm
• Pedals: 9/16" Composite Platform
• Saddle: Aventon Saddle
• Seat Post: 30.9mm Aventon Suspension Seatpost with 50mm travel
• Seat Post Clamp: 34.9mm

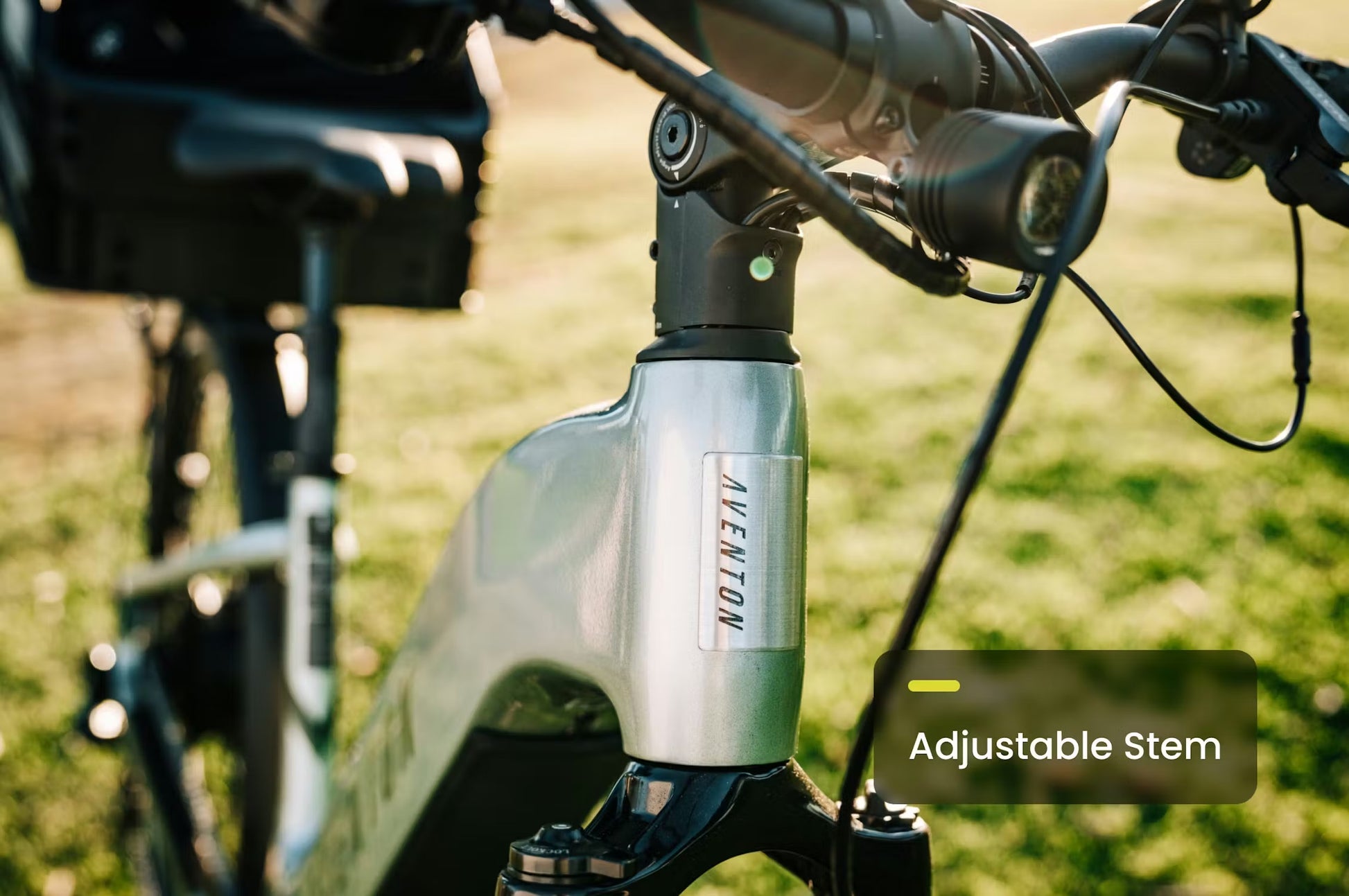

• Handlebars: Aluminum 31.8mm, 680mm
• Grips: Aventon Lock-on grips
• Headset: Sealed Bearing Headset

Included Accessories:

• Rear Rack Weight Limit: 60 lbs

In-Store Experience Upgrade:

Available in-store for an additional $150, which includes:

• Professional assembly and full safety check
• Personalized setup for comfort and performance
• Warranty support and service guidance
