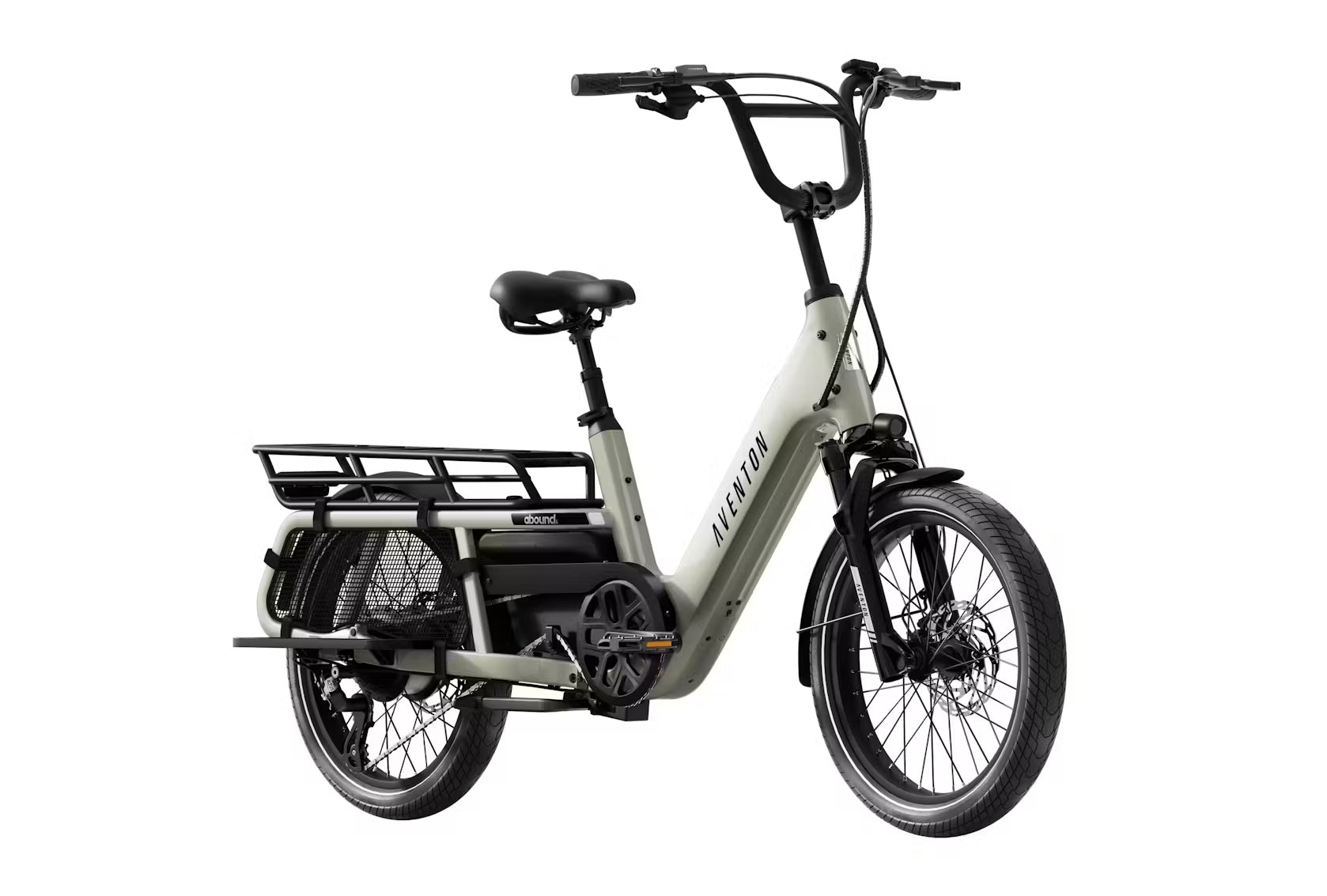

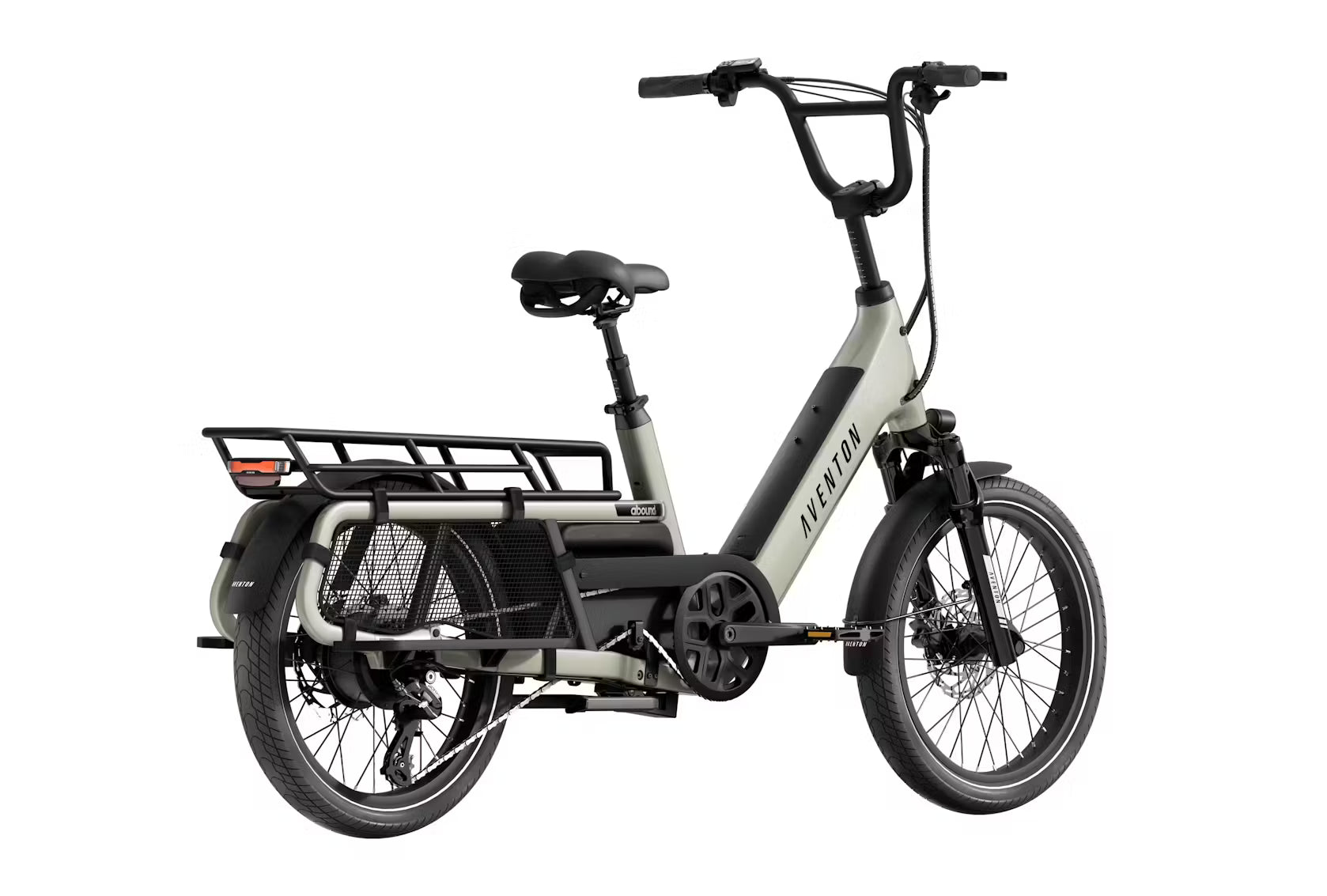

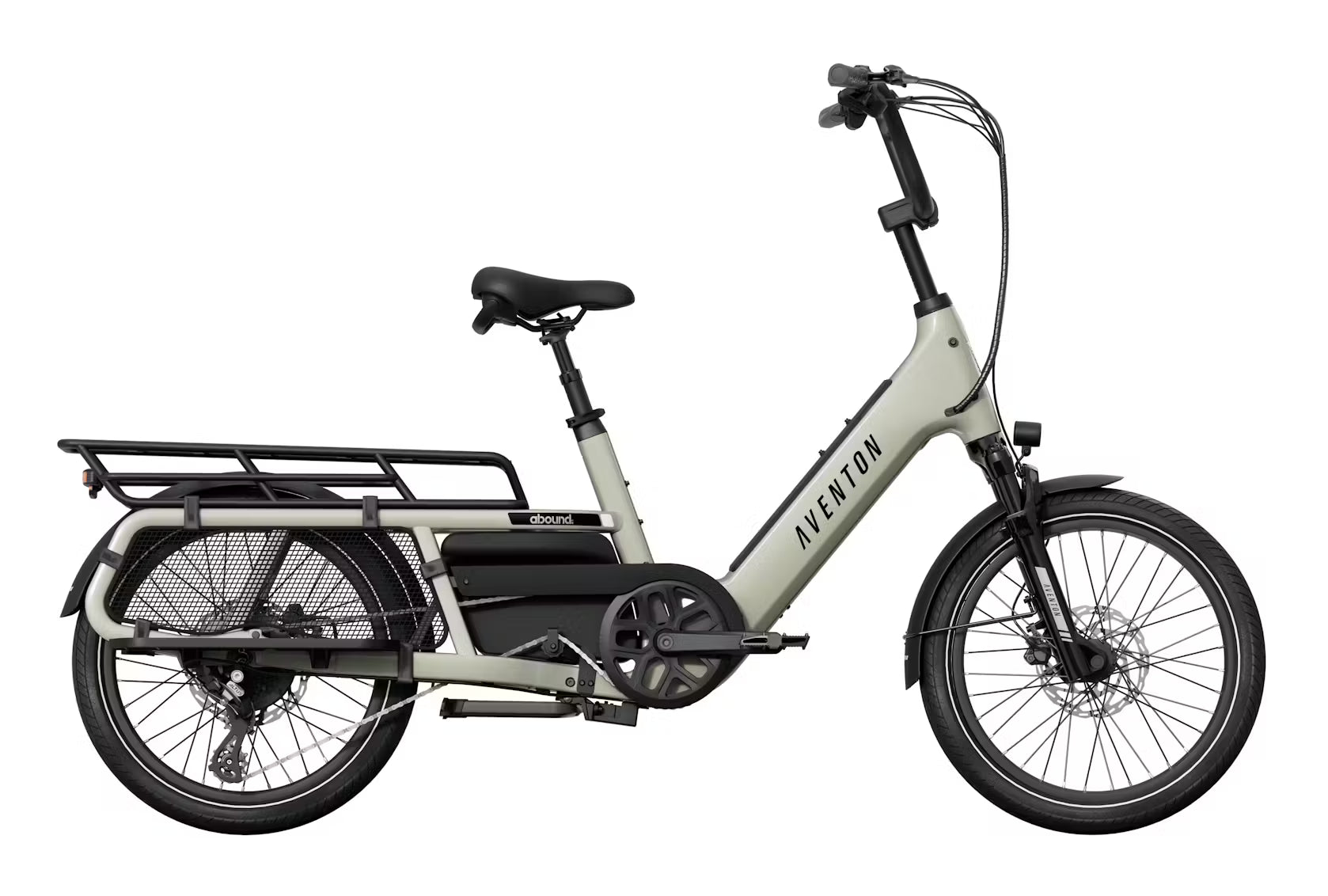

The Aventon Abound LR is built for maximum carrying power, making it the ultimate solution for riders who need to transport more. Whether you're hauling groceries, gear, or even passengers, this long-range cargo e-bike is designed to handle it all with confidence.

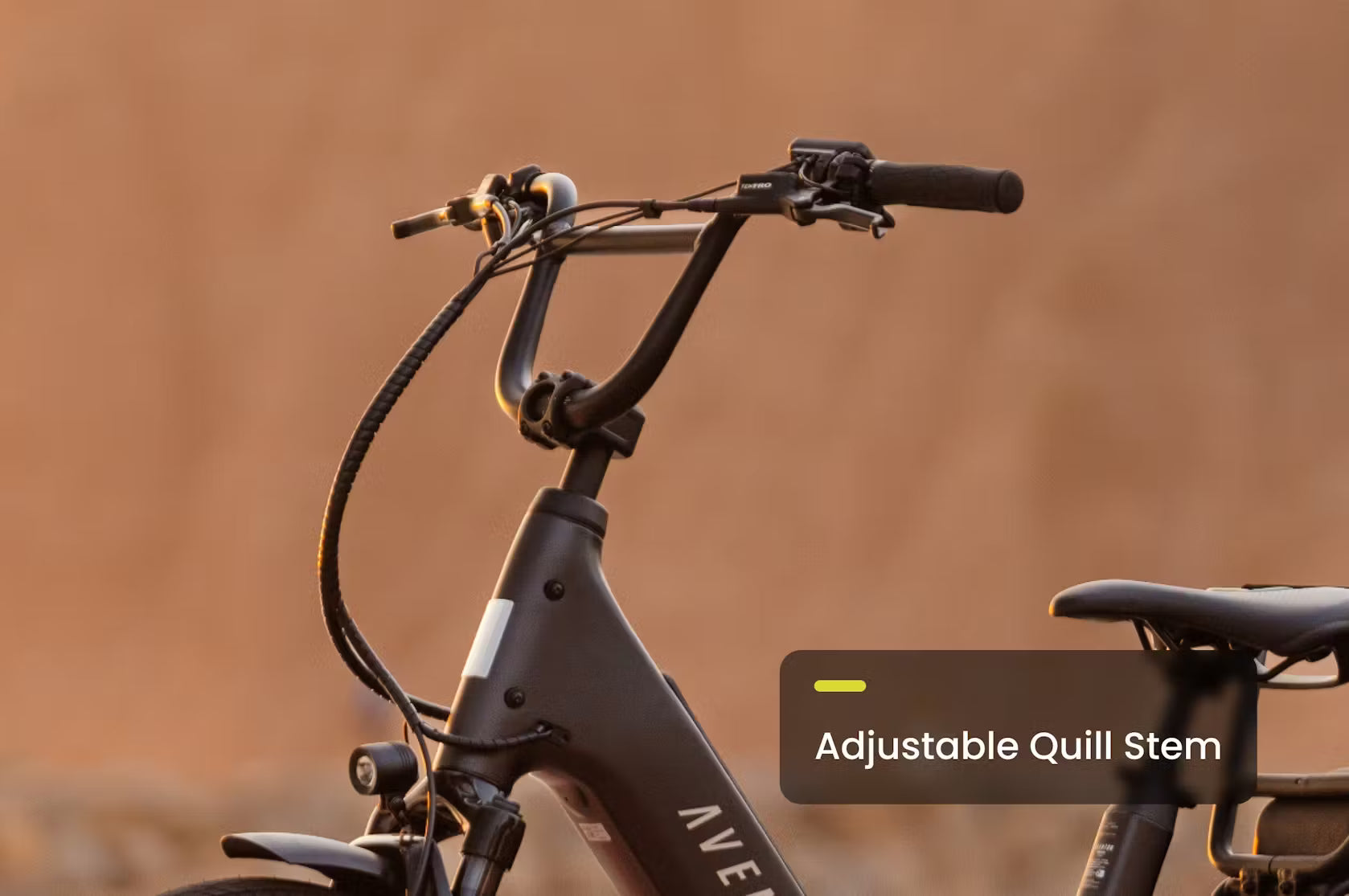

With its extended rear rack and impressive payload capacity, the Abound LR is ready for everything from daily errands to heavy-duty hauling. Its stable frame design ensures control and balance, even when fully loaded. Comfort is built into every ride with features like an adjustable quill stem, front suspension, and a suspension seatpost — helping smooth out bumps and keep you riding comfortably no matter what you're carrying.

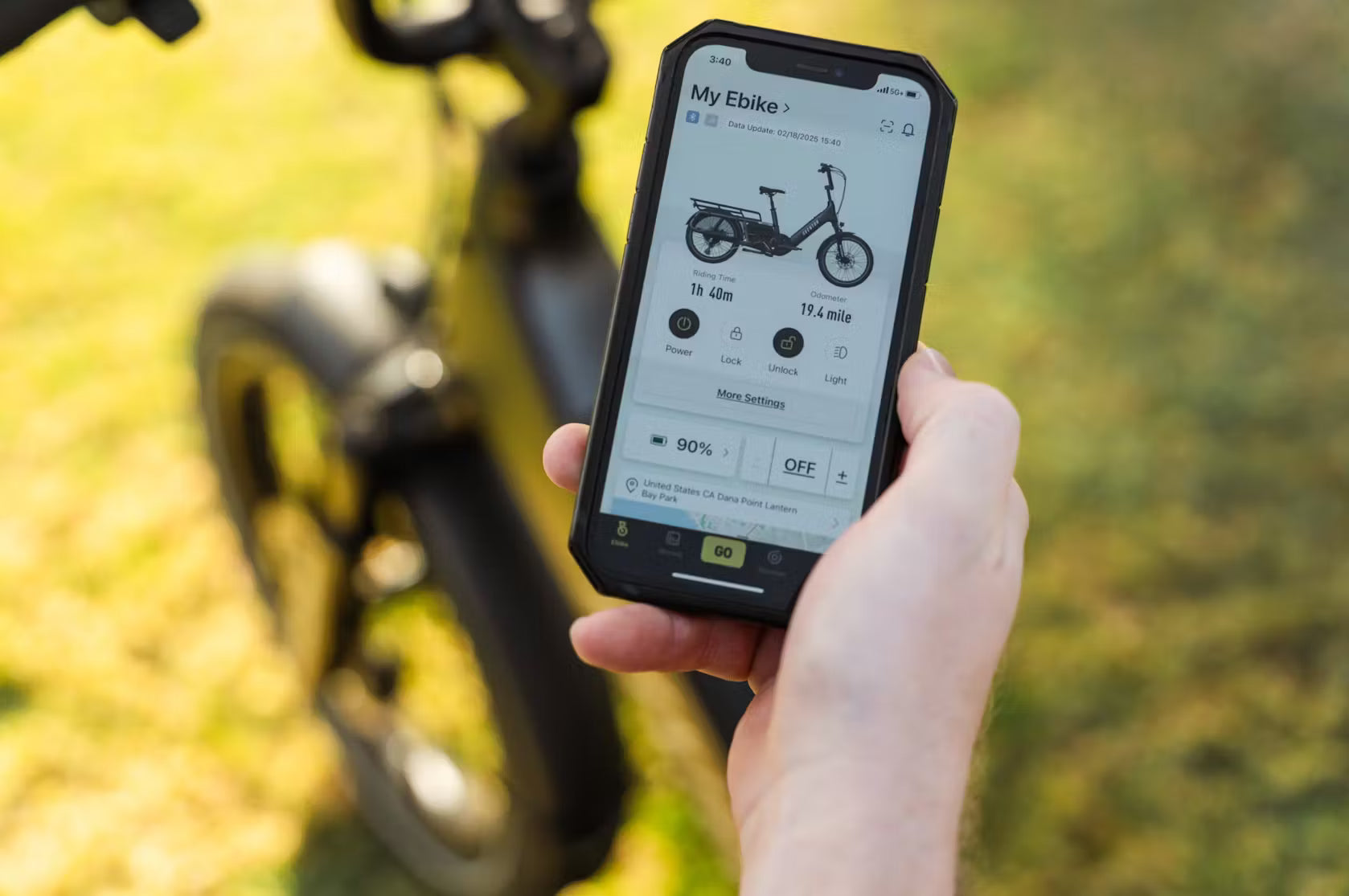

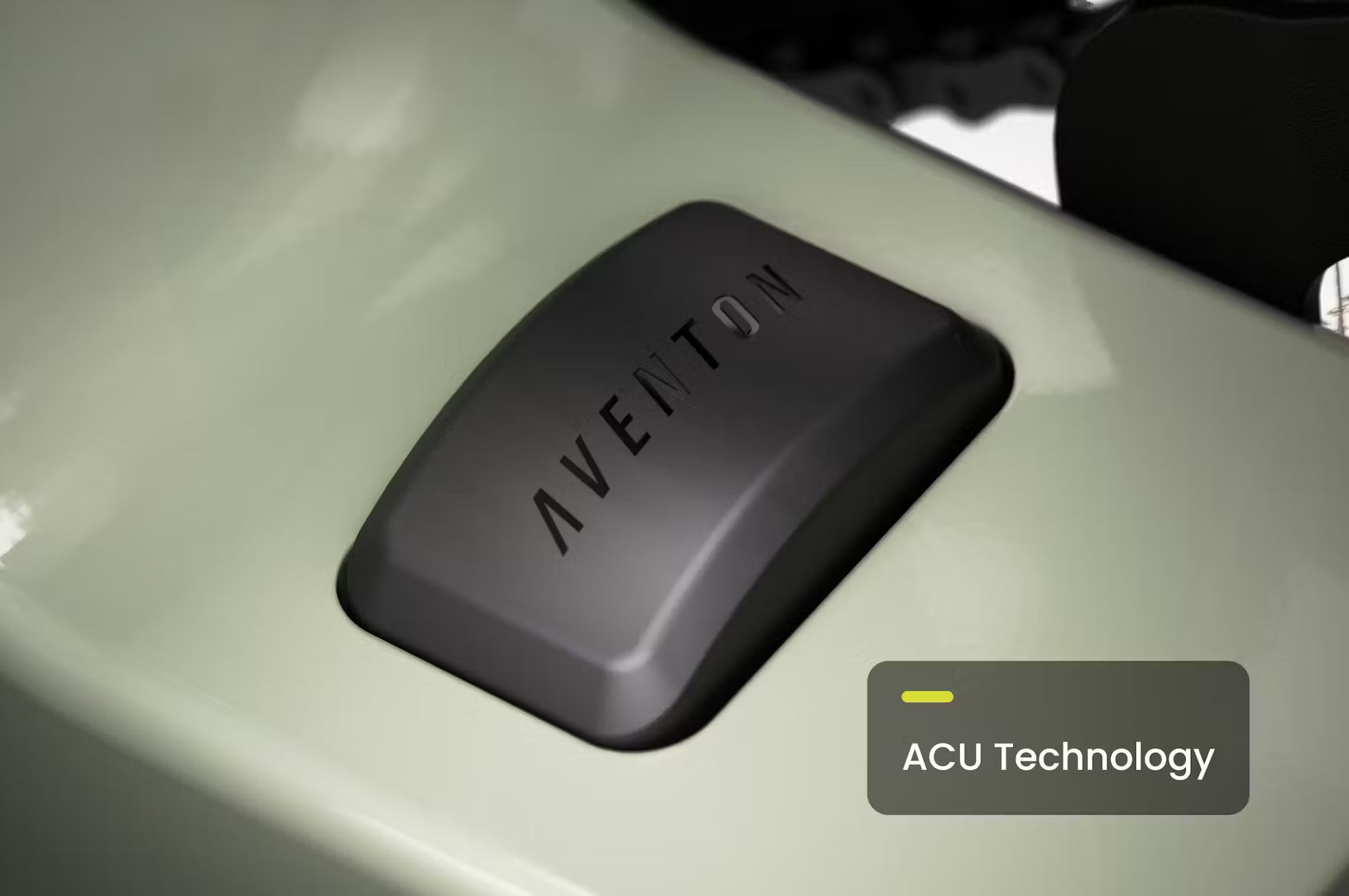

Equipped with Aventon's ACU smart technology, the Abound LR adds an extra layer of security and control, allowing you to track and manage your bike with ease.

Why riders choose the Abound LR:

• High payload capacity for serious carrying
• Extended rear rack for cargo or up to 2 passengers
• Stable frame for confident loaded riding
• Front suspension and suspension seatpost for comfort
• ACU smart technology for tracking and control

Perfect for:

• Families transporting kids
• Riders replacing car trips
• Heavy grocery runs or daily errands
• Small business or delivery use

Key Features:

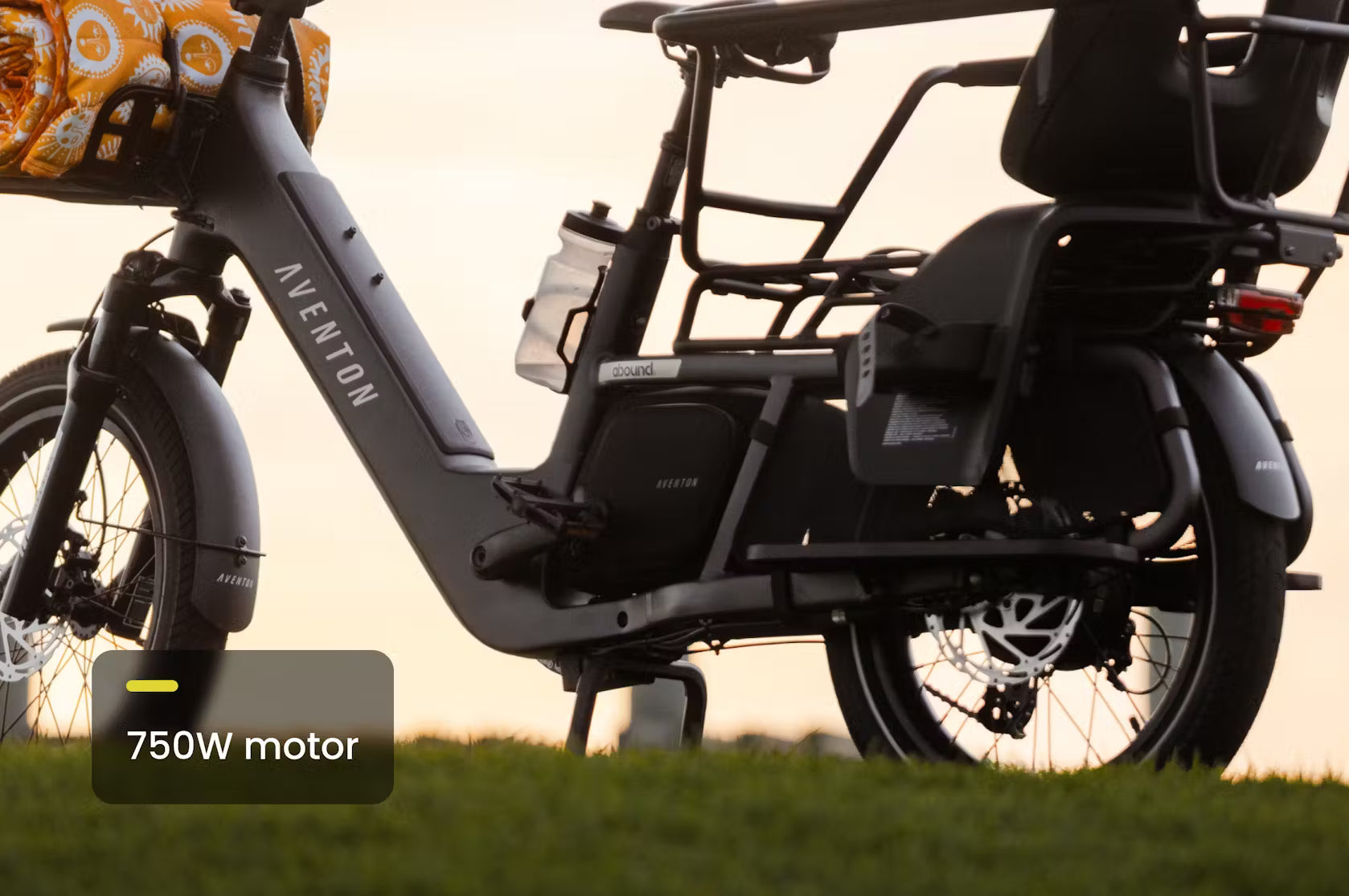

• Motor: Shengyi 36V 750W Hub Drive (1188W peak)
• Motor Torque: 80Nm
• Battery: Removable 36V, 20Ah, 733Wh, LG 21700 cells
• Range: Up to 60 miles
• Payload: Up to 440 lb total capacity
• Carry Capacity: Up to 2 passengers
• Technology: ACU smart system (tracking & control)
• Class: Class 2

Bike Components:

• Weight: 88 lbs
• Total Weight Limit: 440 lbs
• Rider Height: 4'11" – 6'3"
• eBike Class: Class 2
• Ideal Use: Cargo & Utility
• Pedal Assist: 3 Levels (with Ride Tune Customization)
• Water Resistance: Bike – IPX5 | Components – IPX6
• Safety Certifications: UL 2849 and TUV Certified
• Battery Safety Certifications: UL 2271
• Frame: Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery, Step-Through
• Fork: Threaded steerer tube for quill stem, 15x110 spacing, 51mm travel, adjustable lockout
• Rear Spacing: 175mm
• Fork Spacing: 110mm
• Front Wheel: Double Wall Aluminum, 20", 36-hole, 13g, 20x110 thru axle, Schrader valve
• Rear Wheel: Double Wall Aluminum, 20", 36-hole, 12g, nutted hub drive motor, Schrader valve
• Tires: 20x3.0 Innova IA-2131 urban tire with reflective sidewalls
• Display: Aventon BC147
• Battery Weight: 8.7 lbs
• Controller: 36V, 33A

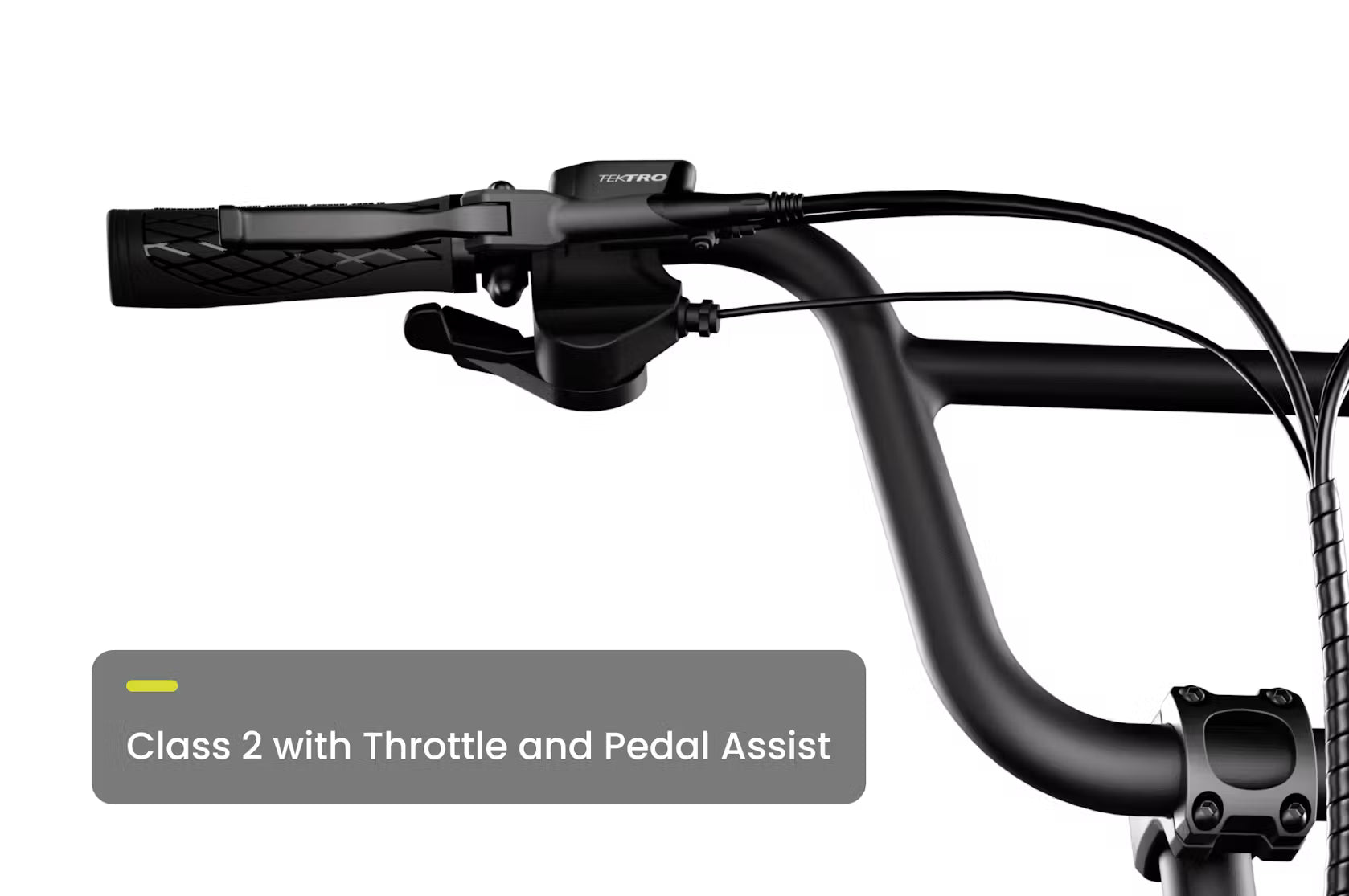

• Throttle: Aventon LH Handlebar Mounted
• Sensors: Double Sided Bottom Bracket Torque Sensor
• Charger: 36V Output: 42V / 4A
• Charging Time (0–100%): 5 hours
• Lights: Front and rear lights integrated with turn signals
• Front Brake: Tektro HD-E3520 Hydraulic Disc Brake w/ EJ1 quick disconnect
• Rear Brake: Tektro HD-E3520 Hydraulic Disc Brake w/ EJ1 quick disconnect
• Front Brake Rotor: 180mm 6 bolt
• Rear Brake Rotor: 203mm 6 bolt
• Rear Derailleur: Shimano Altus RD-M310 8 Speed
• Shifter: Shimano 8 Speed Trigger SL-M315-8R
• Chain: 7/8 Speed, 154L
• Cassette: Shimano CS-HG200-8, 8 Speed, 12-32T
• Chainring: 52T
• Crankset: 3pc, 165mm crank arm
• Bottom Bracket: Square Taper, Sealed, Dual-Sided Torque Sensor
• Pedals: 9/16" Composite Platform
• Saddle: Aventon Saddle w/ grab handle by Selle Royal

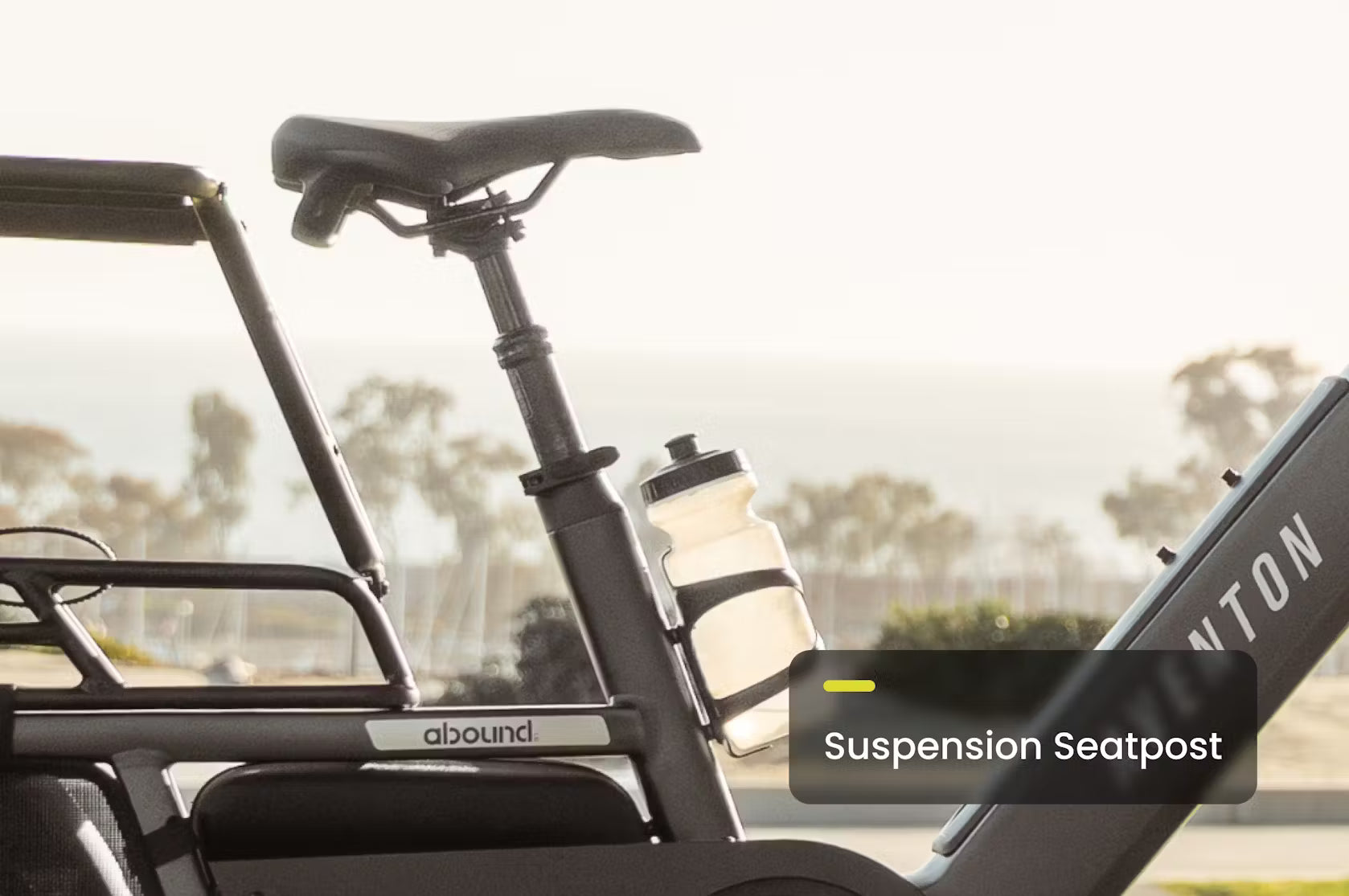

• Seat Post: Aventon Suspension Seatpost, Ø30.9mm, 350mm length, 50mm travel
• Seat Post Clamp: 34.9mm
• Handlebars: BMX Style Aluminum 31.8mm, 720mm
• Grips: Aventon Ergonomic Comfort lock-on grips
• Headset: H886HW Peilin 28.6mm x 56mm x 56mm

Included Accessories:

• Fenders: Included
• Rear Rack: Included
• Rear Rack Weight Limit: 143 lbs

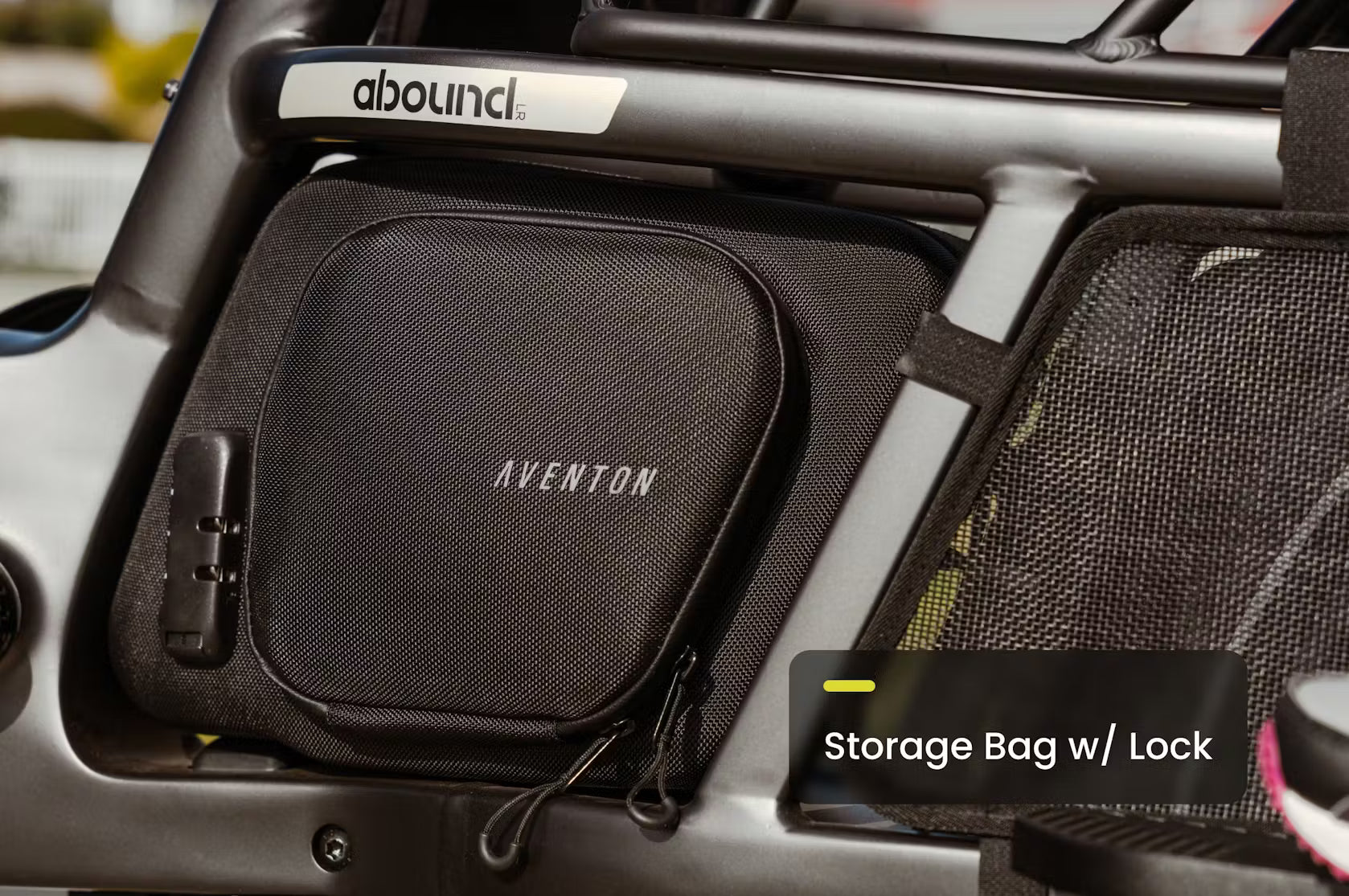

• Frame Storage Bag: Included

In-Store Experience Upgrade:

Available in-store for an additional $150, which includes:

• Professional assembly and full safety check
• Personalized setup for comfort and performance
• Warranty support and service guidance
