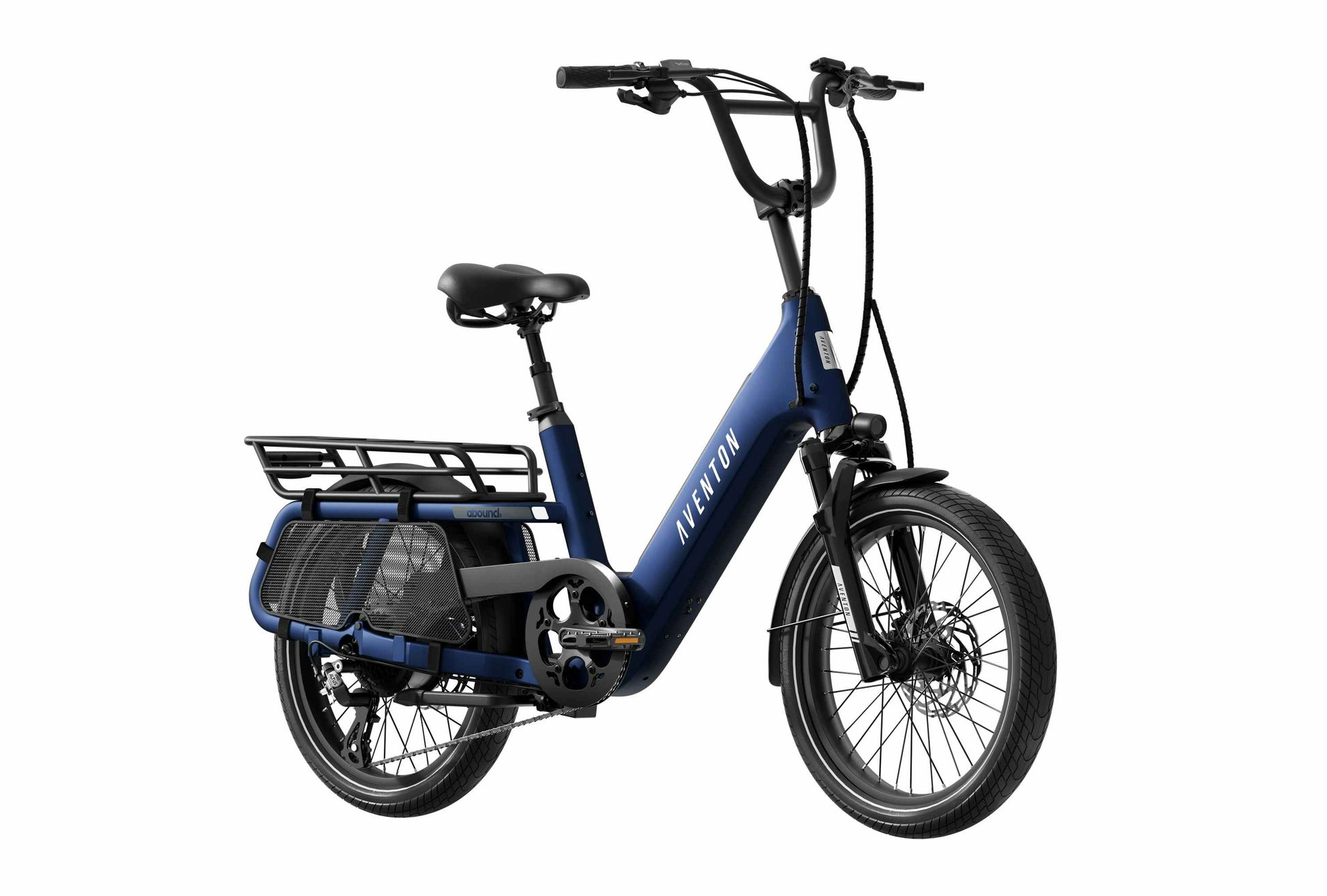

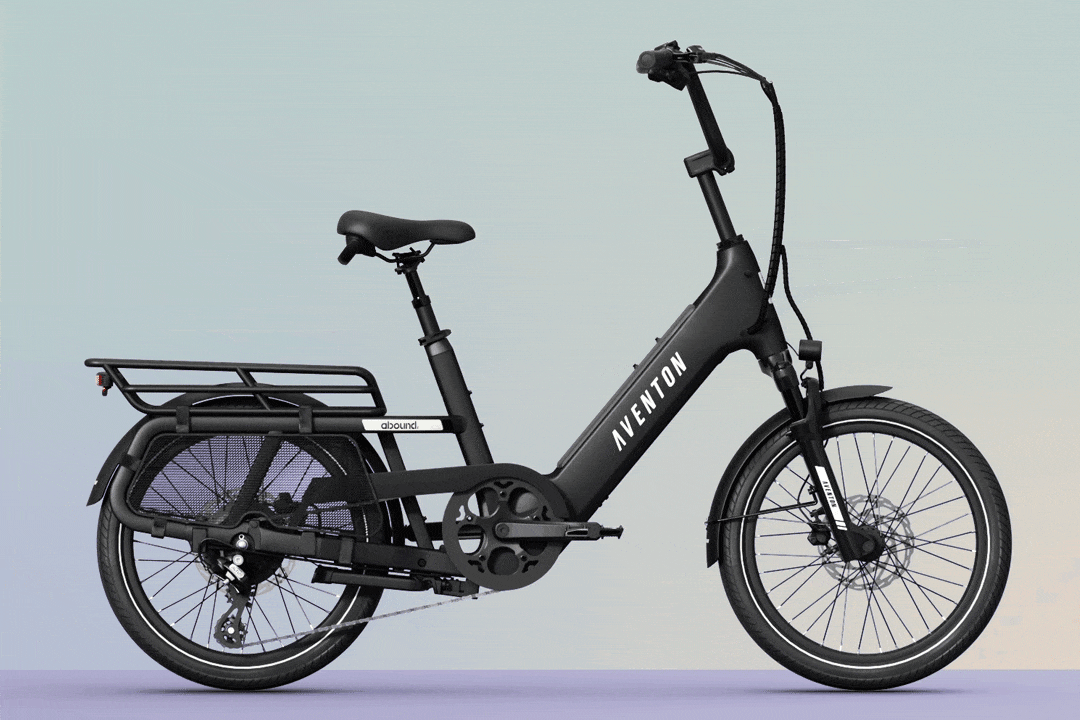

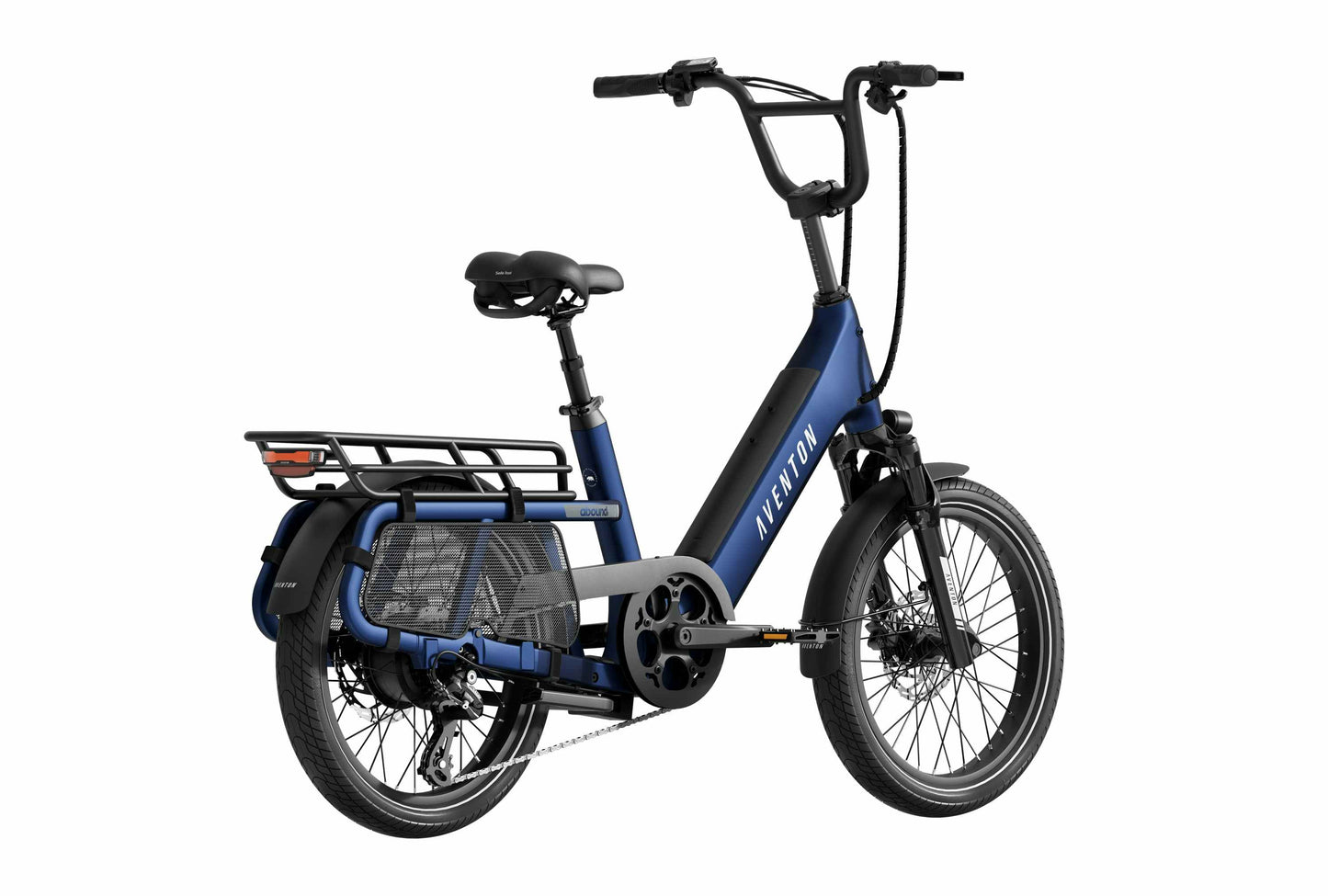

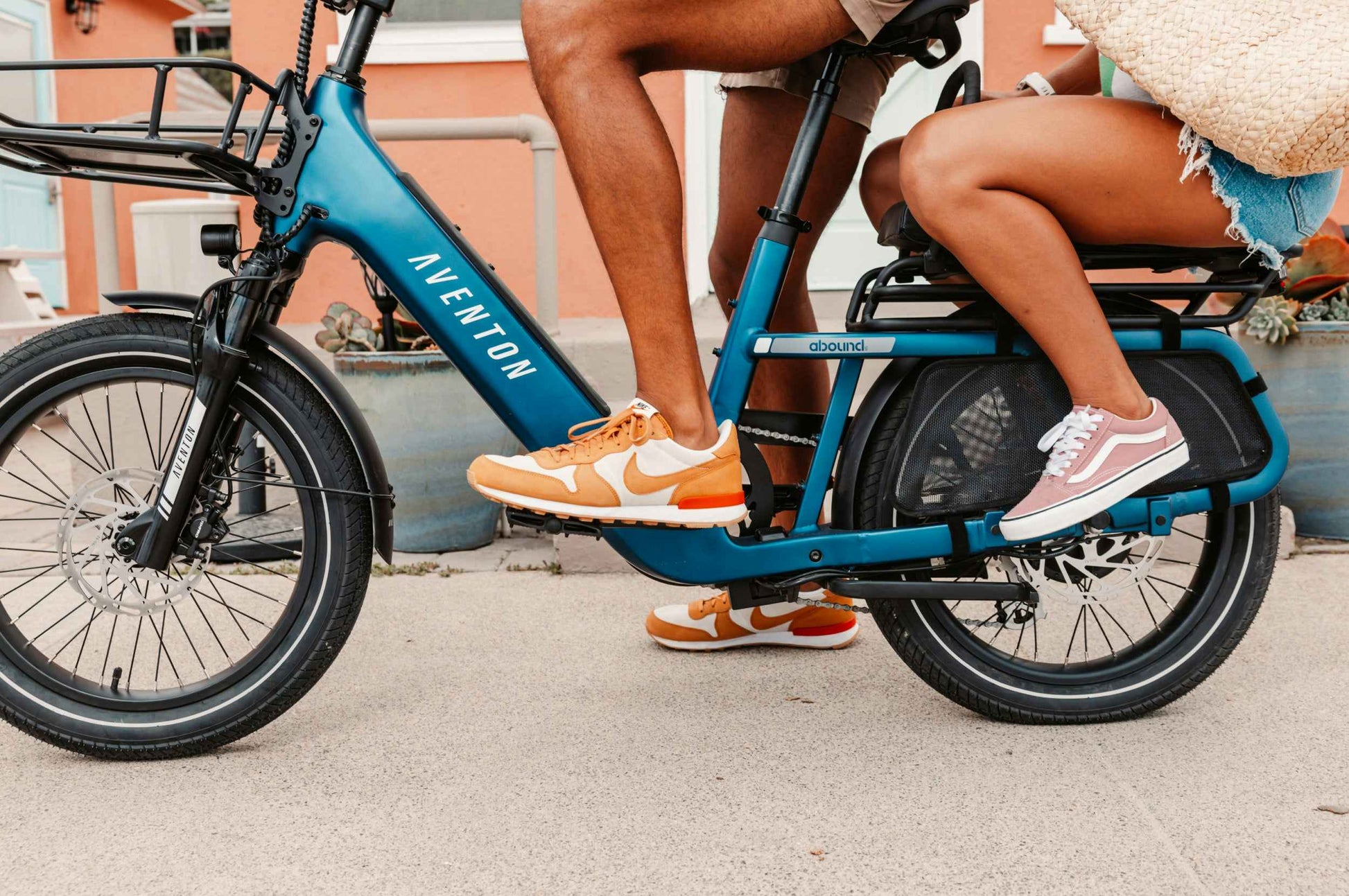

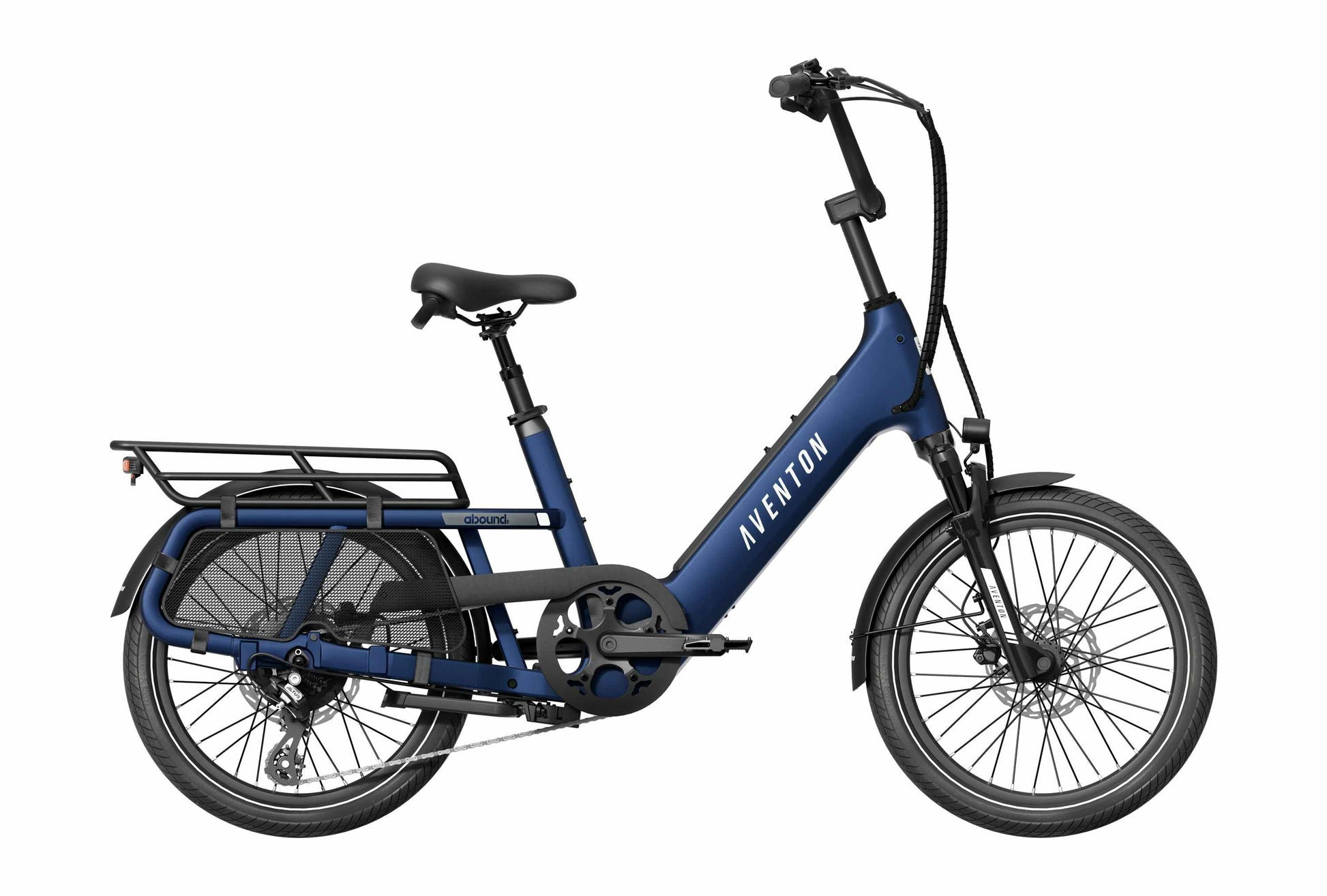

The Aventon Abound SR is a compact and capable cargo e-bike built for everyday versatility. Whether you're carrying gear, running errands, or riding with a passenger, it's designed to handle real-world use with ease.

Its compact frame keeps the bike agile and easy to maneuver, even when fully loaded — making it ideal for city riding where space and control matter. Designed for comfort and control, the Abound SR features an adjustable quill stem and suspension seatpost, helping smooth out bumps and create a more relaxed riding experience.

What sets the Abound SR apart is its advanced security and smart technology. With built-in GPS tracking and theft-deterrent features, you can ride and park with added confidence knowing your bike is protected.

Why riders choose the Abound SR:

• Compact cargo design for easy handling
• Built for carrying gear, groceries, or passengers
• Adjustable fit for improved comfort
• Suspension seatpost for a smoother ride
• GPS tracking and theft deterrent features

Perfect for:

• Riders replacing short car trips
• Urban commuters needing cargo capacity
• Families or shared riders
• Anyone wanting a compact but capable utility bike

Key Features:

• Frame: Compact step-through cargo design
• Comfort: Adjustable quill stem + suspension seatpost (50mm travel)
• Security: GPS tracking and anti-theft features
• Motor: Shengyi 36V 750W Hub Drive (1188W peak)
• Motor Torque: 80Nm
• Battery: Aventon 36V, 20Ah, 733Wh, LG 21700 cells

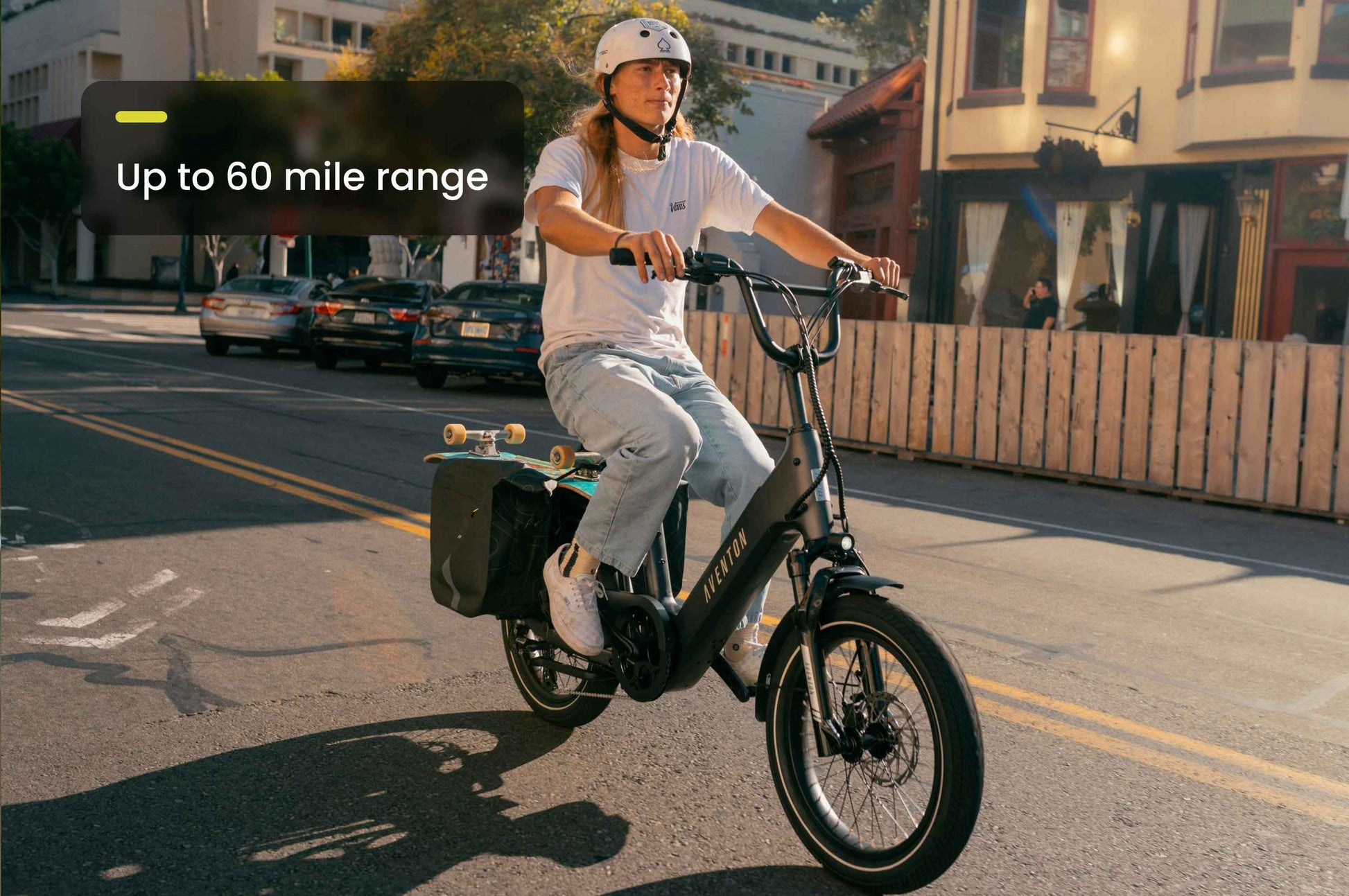

• Range: Up to 60 miles
• Class: Class 2

Bike Components:

• Weight: 80 lbs. (36.287 kg)
• Total Weight Limit: 440 lbs. (199.581 kg)
• Rider Height: 4'11" – 6'3"
• eBike Class: Class 2
• Ideal Use: Cargo & Utility
• Pedal Assist: 3 Levels (with Ride Tune Customization)
• Safety Certifications: UL 2849 and TUV Certified
• Battery Safety Certifications: UL 2271 Certified
• Carry Capacity: Single Passenger
• Water Resistance: Bike – IPX5 | Components – IPX6
• Frame: 6061 Aluminum Alloy with Internal Battery, one-piece diecast aluminum front triangle
• Frame Style: Step-Through
• Fork: Threaded steerer tube for quill stem, 15x110 spacing, 50mm travel, adjustable lockout
• Tires: 20x3.0 urban tire with reflective sidewalls
• Wheels: 20-inch, 12-gauge, 36-hole, double-wall aluminum
• ECU: Aventon ECU Module with wired CAN communication, GPS, Bluetooth, and cellular connectivity

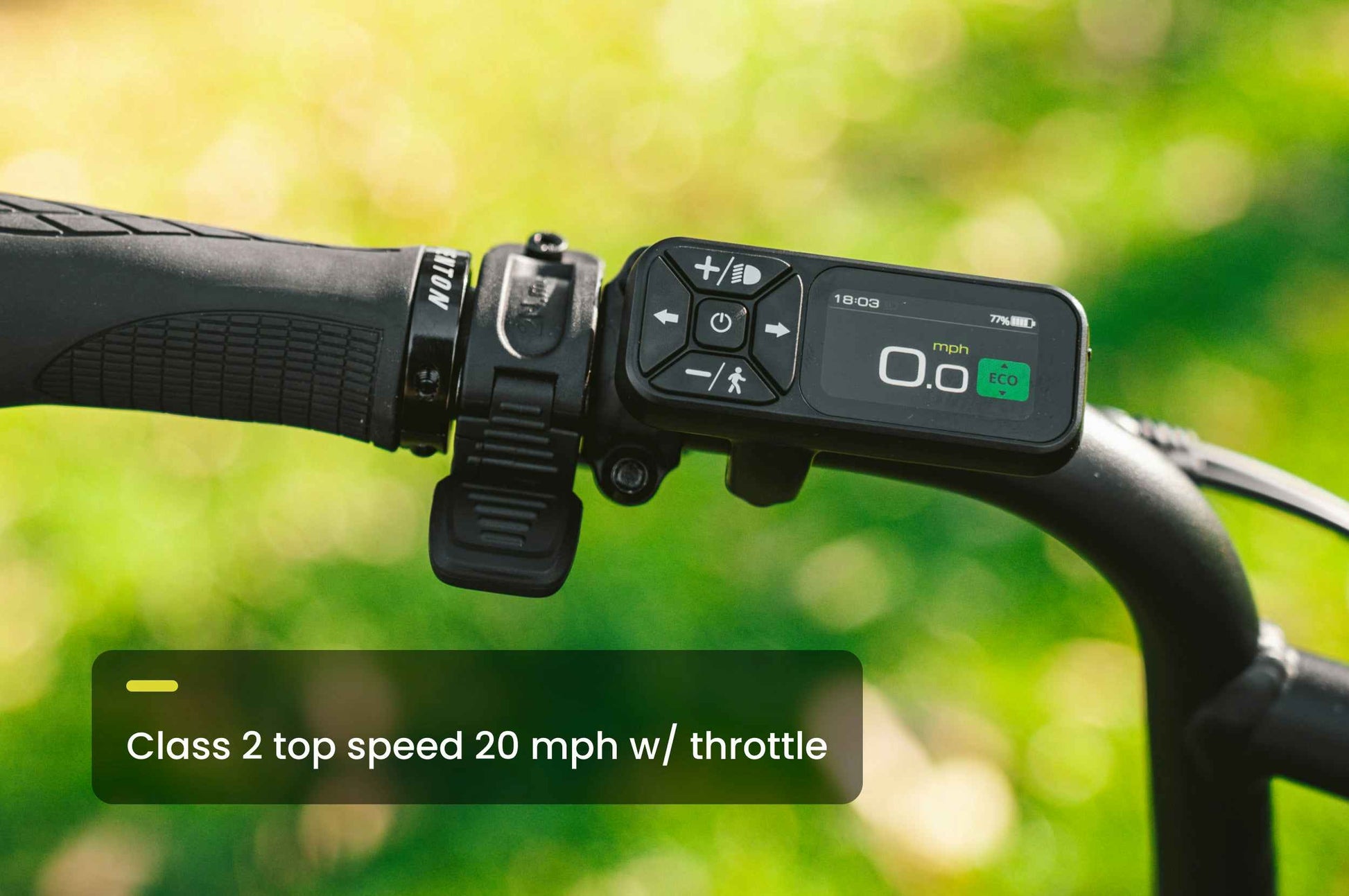

• Throttle: Aventon LH Handlebar Mounted
• Sensors: Double Sided Bottom Bracket Torque Sensor
• Charger: Aventon 4A 42V
• Display: Aventon BC147
• Front Brake: Tektro HD-E3520 Hydraulic Disc Brake
• Rear Brake: Tektro HD-E3520 Hydraulic Disc Brake
• Front Brake Rotor: Tektro 180mm 6 bolt
• Rear Brake Rotor: Tektro 203mm 6 bolt
• Chain: 122 Link, 8 Speed
• Chainring: 52T
• Chainring BCD: 130
• Crankset: 3pc, 165mm crank arm
• Rear Derailleur: Shimano Altus RD-M310 8 Speed
• Shift Lever: Shimano SL-M315-8R 8 Speed
• Cassette: Shimano CS-HG200-8, 8 Speed, 12-32T
• Pedals: 9/16" Composite Platform
• Saddle: Aventon by SelleRoyal

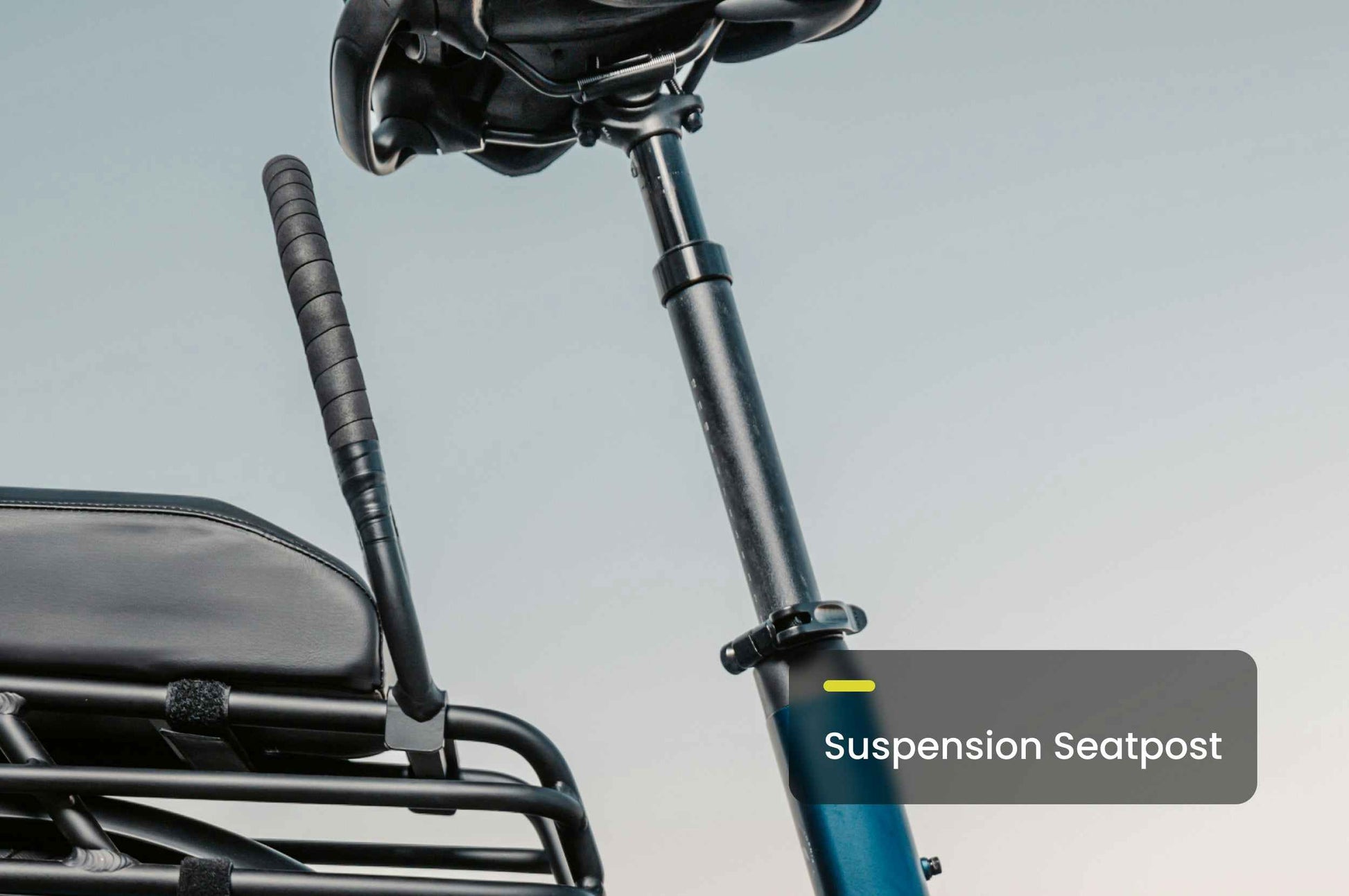

• Seat Post: 30.9mm Aventon Suspension Seatpost with 50mm travel
• Handlebars: BMX Style, 31.8mm bar clamp, 680mm width
• Stem: Quill Stem, 31.8mm bar clamp, 40mm length, 140mm vertical adjustment
• Seat Clamp: 34.9mm Quick Release
• Grips: Lock-on ergonomic

Included Accessories:

• Rear Rack: Included
• Kickstand: Included (E-lock)
• Rear Wheel Mesh Guards: Included
• Rear Rack Weight Limit: 143 lbs

In-Store Experience Upgrade:

Available in-store for an additional $150, which includes:

• Professional assembly and full safety check
• Personalized setup for comfort and performance
• Warranty support and service guidance
